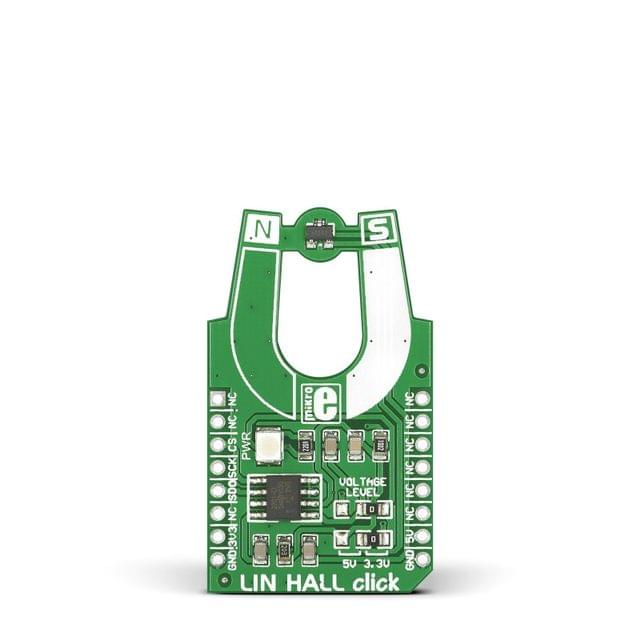

LIN HALL click
Sku: TT-MK-MIKROE-1648
₹2,036.09
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5abb8d25500f11022efc9f60/images/5abb8d25500f11022efc9f61/5abb8bd969f24ac8bfc78bc5/5abb8bd969f24ac8bfc78bc5.jpg
Description of product
Description
LIN HALL click carries an MLX90242 linear Hall sensor IC (with built-in active error correction circuitry) and an MCP3201 12-bit ADC. It outputs a signal that is proportional to the flux density of a magnetic field—a north magnetic field will increase the output value while a south magnetic field will cause it to decrease. The ratiometric output allows you to infer the linear or rotary position of a target object by placing magnets on it. LIN HALL click communicates with the target board through the mikroBUS SPI lines (CS, CSK, MISO). The board is designed to use either a 3.3V or a 5V power supply.
Specification
| Type | Hall effect,Magnetic |
| Applications | Measuring strength of different magnets. Measuring distance of a magnet from sensor (suitable for industrial controllers, joysticks, or any other applications for contactless linear or rotary position sensing) |
| On-board modules | MLX90242 linear Hall sensor IC (with built-in active error correction circuitry) and an MCP3201 12-bit ADC |
| Key Features | Built-in active error correction circuitry. Linear output proportional to magnetic flux density |
| Key Benefits | Sensor resistant to dirt and other contaminants. Contactless sensing ensures system longevity |
| Interface | SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
