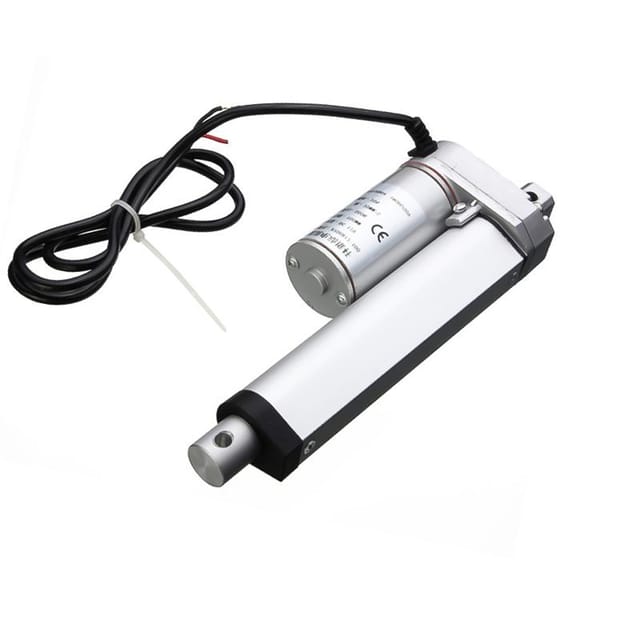

68a81db21e42c75034b335d5 Linear Actuator Stroke Length 100MM, 7mm/S, 1500N, 24V https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/68a81db31e42c75034b335d7/i.jpg
This Miniature Linear Actuator Stroke Length 100MM,7mm/S,1500N,24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.

Note:

1. Actual product may vary in terms of colour and markings.

2. The following conditions can cause serious damage to the product.

   1. Direct connect with AC power
   2. Use in the above standard voltage environment
   3. Push/Pull exceed the maximum value of the product show
   4. The stroke did not finish, still with power, forced to cease.


3. The following conditions may shorten the product life.
   1. High-frequency operation
   2. High temperature
Linear Actuator Parts:

Following figure shows various parts of Linear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.

Features:

  1. Aluminium frame and extension tube
  2. Compact Design
  3. Built in Limit Switch
  4. Low Noise
  5. Moisture-proof Surface
  6. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  7. Permanent magnet DC motor drive: Voltage 24VDC
  8. Self Locking Force: 1500N
Applications:
  1. Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  2. The medical electric bed, surgical bed, traction bed
  3. Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
  4. Chair for medical use: Electric wheelchair, massage chair, dental chair.
  5. Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Includes:

1 x Linear Actuator Stroke Length 100MM,7mm/S, 1500N, 24V

TT-RB-905295
in stockINR 3956
1 1

Linear Actuator Stroke Length 100MM, 7mm/S, 1500N, 24V

Sku: TT-RB-905295
Be the first to review this product
₹3,956
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

This Miniature Linear Actuator Stroke Length 100MM,7mm/S,1500N,24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.

Note:

1. Actual product may vary in terms of colour and markings.

2. The following conditions can cause serious damage to the product.

   1. Direct connect with AC power
   2. Use in the above standard voltage environment
   3. Push/Pull exceed the maximum value of the product show
   4. The stroke did not finish, still with power, forced to cease.


3. The following conditions may shorten the product life.
   1. High-frequency operation
   2. High temperature
Linear Actuator Parts:

Following figure shows various parts of Linear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.

Features:

  1. Aluminium frame and extension tube
  2. Compact Design
  3. Built in Limit Switch
  4. Low Noise
  5. Moisture-proof Surface
  6. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  7. Permanent magnet DC motor drive: Voltage 24VDC
  8. Self Locking Force: 1500N
Applications:
  1. Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  2. The medical electric bed, surgical bed, traction bed
  3. Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
  4. Chair for medical use: Electric wheelchair, massage chair, dental chair.
  5. Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Includes:

1 x Linear Actuator Stroke Length 100MM,7mm/S, 1500N, 24V
