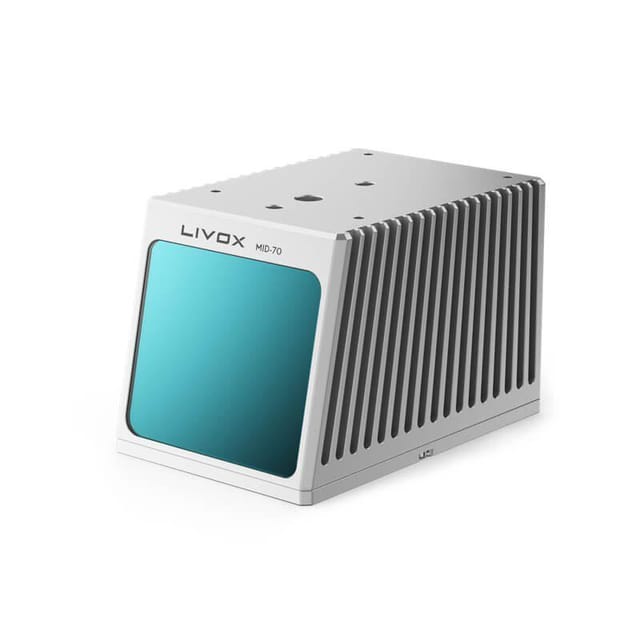

The Livox Mid-70 is a cutting-edge LiDAR sensor designed for low-speed autonomous driving and mobile robotics. It offers an enhanced 70.4° circular FOV, smaller blind zones, and high-precision range data, making it ideal for crowded environments like airports, hospitals, and malls. With cost-effective semiconductor components and reliable performance, the Mid-70 provides superior detection and performance at a fraction of the cost compared to traditional systems.

Note: For more technical details datasheet is attached.

Useful Links:

https://www.livoxtech.com/mid-70/downloads

Features:

1. 360° FOV: Full horizontal coverage and vertical range from -7° to 52°.
2. Detection Range: 40 m at 10% reflectivity, 70 m at 80% reflectivity.
3. Laser Wavelength: 905 nm for precise laser detection.
4. Range Precision: ≤ 2 cm at 10 m and ≤ 3 cm at 0.2 m.
5. Angular Precision: < 0.15° for accurate angular measurements.
6. Point Rate: 200,000 points/s (first return).
7. Frame Rate: 10 Hz for continuous data capture.
8. IMU: Built-in ICM40609 IMU for enhanced stability.
9. Data Port: 100 BASE-TX Ethernet for fast data transfer.
10. Laser Safety: Class 1 laser, eye-safe (IEC60825-1:2014).
11. Power Consumption: 6.5 W (average) for efficient energy use.
12. Operating Temperature: Works in temperatures from -4°F to 131°F (-20°C to 55°C).
13. IP Rating: IP67 for dust and water resistance.
14. False Alarm Rate: Less than 0.01% at 100 klx.
15. Self-Heating Mode: Automatically activates in low temperatures to ensure functionality.

Package Includes:

1 x Livox mid 70
1 x Power adapter Seat
1 x 2.0×1 lens clear Cleansing cloth
1 x Hexagon L-shaped wrench Hand x1 Wire package
