200W AC/DC Enclosed Switching Power Supply power supply unit features a wide input voltage range of 85-305VAC or 120-430VDC, accepting both AC and DC inputs. It operates in a temperature range of -30°C to +70°C and includes a built-in active PFC function for enhanced efficiency. With high I/O isolation (4000VAC test voltage) and multiple protections (short circuit, over-current, over-voltage, and over-temperature),200W AC/DC Enclosed Switching Power Supply  ensures safe operation. The LED indicator signals power-on status, and it meets emissions standards (CISPR32/EN55032 CLASS B). The unit also offers a quick start-up delay of less than 5 seconds at -30°C, supports high altitudes up to 5000m, and is designed according to IEC62368 and EN60335 standards.

Features:

1. Wide input voltage range: 85 – 305VAC or 120 – 430VDC, accepts both AC and DC inputs (dual-use of same terminal)
2. Operating temperature range: -30°C to +70°C
3. Built-in active PFC function for improved efficiency
4. High I/O isolation with test voltage up to 4000VAC
5. Protections: Output short circuit, over-current, over-voltage, and over-temperature
6. LED indicator for power-on status
7. Compliant with emissions standards: CISPR32/EN55032 CLASS B
8. Start-up delay time: Less than 5 seconds at -30°C
9. High operating altitude: Up to 5000m
10. Designed according to IEC62368 and EN60335 standards.
11. Footprint & 3D: 3D
12. Markings: E

Package Includes:

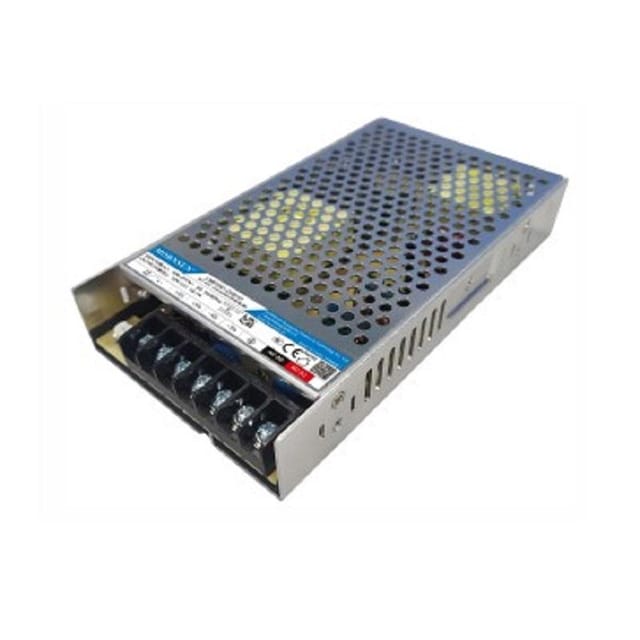

1 x LMF200-23B48 Mornsun SMPS – 200W AC/DC Enclosed Switching Power Supply
