616a38ffae6fb7712751b58a Maduino UNO https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/616a38f9962dd931f0a21325/webp/maduino-uno_1.jpg

Description:

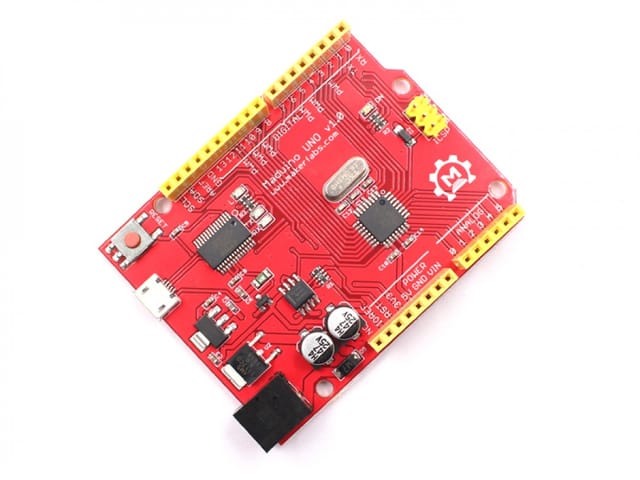

Maduino UNO is an Arduino compatible board, which is based on ATmega328P MCU and Arduino UNO bootloader. It used an FT232 as a UART- to- USB converter. You can program the board via a micro- USB cable. Also, you can power the board via a DC Jack input, 7 to 15V is acceptable.

Features:

  • ATmega328 Microcontrolle
  • Arduino UNO bootloader
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • ISP Header
  • Arduino UNO-R3 Shield Compatible
  • Micro USB programming and power supply
  • DC Current per I/O Pin: 40 mA
  • DC Jack Input: 7v-15v
  • Flash Memory: 32 KB
  • RAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Dimension: 68mm x53mm x 11mm

Package List:

  • 1 x Maduino UNO
  • 1 x Micro USB Cable

Documents:

TT-MF-OAC0328MU
in stockINR 1504
Makerfabs
1 1
Maduino UNO

Maduino UNO

Sku: TT-MF-OAC0328MU
₹1,504


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

Maduino UNO is an Arduino compatible board, which is based on ATmega328P MCU and Arduino UNO bootloader. It used an FT232 as a UART- to- USB converter. You can program the board via a micro- USB cable. Also, you can power the board via a DC Jack input, 7 to 15V is acceptable.

Features:

  • ATmega328 Microcontrolle
  • Arduino UNO bootloader
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • ISP Header
  • Arduino UNO-R3 Shield Compatible
  • Micro USB programming and power supply
  • DC Current per I/O Pin: 40 mA
  • DC Jack Input: 7v-15v
  • Flash Memory: 32 KB
  • RAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Dimension: 68mm x53mm x 11mm

Package List:

  • 1 x Maduino UNO
  • 1 x Micro USB Cable

Documents:
