64621e1e968c07270c80be92 MCC USB-SSR 24: 24 Channel Solid-State Digital I/O USB device https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/64621d9bee71ce709ab563bd/download-84-.jpg

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-SSR24 provides mounting locations for 24 SSR modules. SSR digital I/O modules are relay control modules that provide 4000 Vrms of optical isolation. Digital input modules sense AC/DC voltages from field devices and convert them to digital TTL signals. Digital output modules use TTL signals to switch and control AC/DC loads.

Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW, Linux®, and Python.

Features

  • Mounting rack for 24 solid state relay (SSR) modules (backplane is divided into two groups of eight modules and two groups of four modules)
  • Onboard switch to configure the module type (input or output) for each module group (you cannot mix input and output modules within a group)
  • Onboard switch to configure the control logic polarity (active high or low) for each module group
  • Onboard switch to configure the power-up state for output modules
  • Switch settings can be read back with software
  • Independent LEDs at each module position to indicate the on/off status of each module
  • Eight pairs of screw terminal banks for field wiring connections, with positive (+) and negative (-) relay contacts brought out to the terminals
  • USB out and power out connections support powering and controlling multiple MCC USB devices from one external power source and one USB port in a daisy-chain configuration
  • Rugged enclosure that can mount on a DIN rail or on a bench
  • The USB-SSR24 is powered by an external 9 V regulated power supply that is shipped with the device

What's Included

  • USB-SSR 24
  • 9V power supply
  • Printed insert: DAQami Quick Start
  • MCC packaging assembly/foam, etc.
TT-DGL- 6069-410-200
in stockINR 70521.95
1 1
MCC USB-SSR 24: 24 Channel Solid-State Digital I/O USB device

MCC USB-SSR 24: 24 Channel Solid-State Digital I/O USB device

Sku: TT-DGL- 6069-410-200
₹70,521.95


Sold By: tenettech
Features
  • Shipping in 12-14 Working Days

Description of product

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-SSR24 provides mounting locations for 24 SSR modules. SSR digital I/O modules are relay control modules that provide 4000 Vrms of optical isolation. Digital input modules sense AC/DC voltages from field devices and convert them to digital TTL signals. Digital output modules use TTL signals to switch and control AC/DC loads.

Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW, Linux®, and Python.

Features

  • Mounting rack for 24 solid state relay (SSR) modules (backplane is divided into two groups of eight modules and two groups of four modules)
  • Onboard switch to configure the module type (input or output) for each module group (you cannot mix input and output modules within a group)
  • Onboard switch to configure the control logic polarity (active high or low) for each module group
  • Onboard switch to configure the power-up state for output modules
  • Switch settings can be read back with software
  • Independent LEDs at each module position to indicate the on/off status of each module
  • Eight pairs of screw terminal banks for field wiring connections, with positive (+) and negative (-) relay contacts brought out to the terminals
  • USB out and power out connections support powering and controlling multiple MCC USB devices from one external power source and one USB port in a daisy-chain configuration
  • Rugged enclosure that can mount on a DIN rail or on a bench
  • The USB-SSR24 is powered by an external 9 V regulated power supply that is shipped with the device

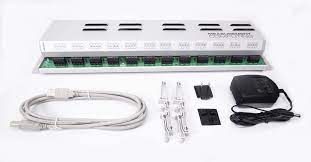

What's Included

  • USB-SSR 24
  • 9V power supply
  • Printed insert: DAQami Quick Start
  • MCC packaging assembly/foam, etc.
