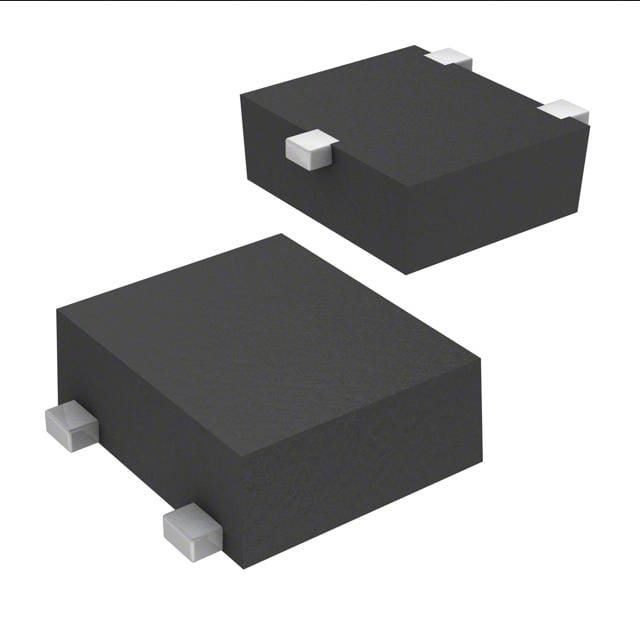

Toshiba Semiconductor and Storage MT3S113TULFTR-ND,MT3S113TULFCT-ND,MT3S113TULFDKR-ND
Sku: TT-DKEY-MT3S113TULFTR-ND,MT3S113TULFCT-ND,MT3S113TULFDKR-ND
₹93.6
Features
- Shipping in 10-12 Working Days
Description of product
RF TRANS NPN 5.3V 11.2GHZ UFM
Product Attributes:
| Series | - |
| Product Status | Active |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 5.3V |
| Frequency - Transition | 11.2GHz |
| Noise Figure (dB Typ @ f) | 1.45dB @ 1GHz |
| Gain | 12.5dB |
| Power - Max | 900mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 30mA, 5V |
| Current - Collector (Ic) (Max) | 100mA |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Flat Leads |
| Supplier Device Package | UFM |
| Grade | - |
| Qualification | - |
