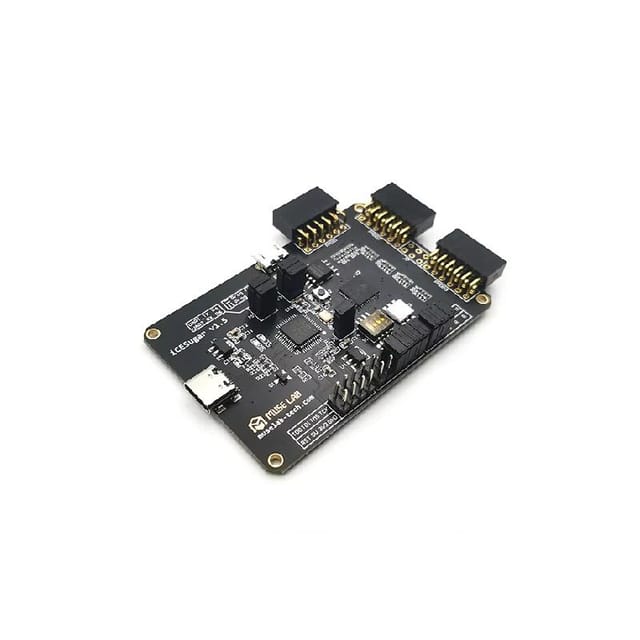

Muse Lab iCE Sugar FPGA Development Board Open Source RISC-V ICE40UP5k Icebreaker Fomu is a open source FPGA development board based on Lattice iCE40UP5k designed and made by Muse Lab. Though it’s small and exquisite, it contains rich peripheral resources on board including RGB LED ,Switch TY ,PE-C-USB, Micro-USB. Most of the IO are led out by standard PMOD connector and can connect with other PMOD device. Also, it has a on-board debugger called iCELink which is based on ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a big convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG.

Features:

1. iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
2. On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
3. Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
4. Totally use open source tool chain to develop
5. Built-in 8MB SPI-Flash and support DUAL/QUAD SPI & QPI

Package Includes:

1 x Muse Lab iCESugar FPGA Development Board

1 x USB cable
