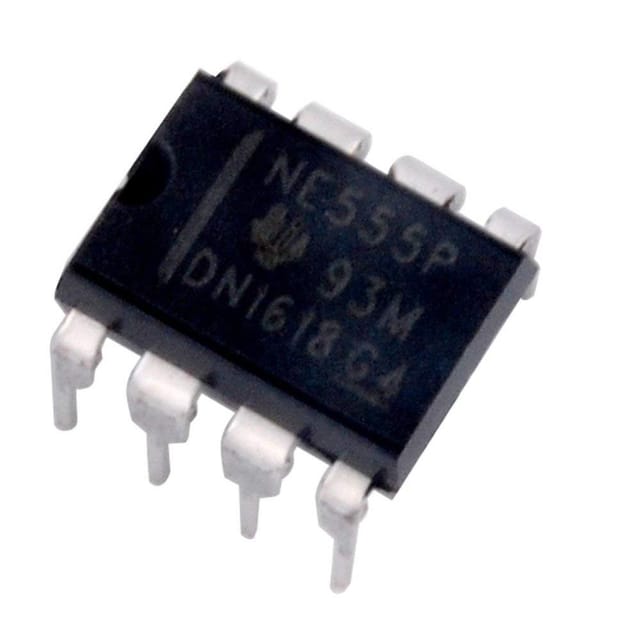

68a59bf519b79fa86f50b409 NE 555 P PDIP-8 Timer IC (Pack of 5) https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/68a59bf619b79fa86f50b40b/ne555p-2.jpg
The NE 555 P timer IC is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by the use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.

Features:

  1. Timing from microseconds to hours
  2. A stable or monostable operation
  3. Adjustable duty cycle
  4. TTL compatible output can sink or source up to 200mA
  5. Applications: Clock & Timing, Consumer Electronics, Aerospace, Defence, Military, Embedded Design & Development



Package Includes:

1 x NE 555 P PDIP-8 Timer IC (Pack of 5)

TT-RB-161997
in stockINR 61
1 1

NE 555 P PDIP-8 Timer IC (Pack of 5)

Sku: TT-RB-161997
Be the first to review this product
₹61
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The NE 555 P timer IC is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by the use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.

Features:

  1. Timing from microseconds to hours
  2. A stable or monostable operation
  3. Adjustable duty cycle
  4. TTL compatible output can sink or source up to 200mA
  5. Applications: Clock & Timing, Consumer Electronics, Aerospace, Defence, Military, Embedded Design & Development



Package Includes:

1 x NE 555 P PDIP-8 Timer IC (Pack of 5)
