onsemi NSVF4020SG4T1GOSTR-ND,NSVF4020SG4T1GOSCT-ND,NSVF4020SG4T1GOSDKR-ND
Sku: TT-DKEY-NSVF4020SG4T1GOSTR-ND,NSVF4020SG4T1GOSCT-ND,NSVF4020SG4T1GOSDKR-ND
₹82.08
Features
- Shipping in 10-12 Working Days
Description of product

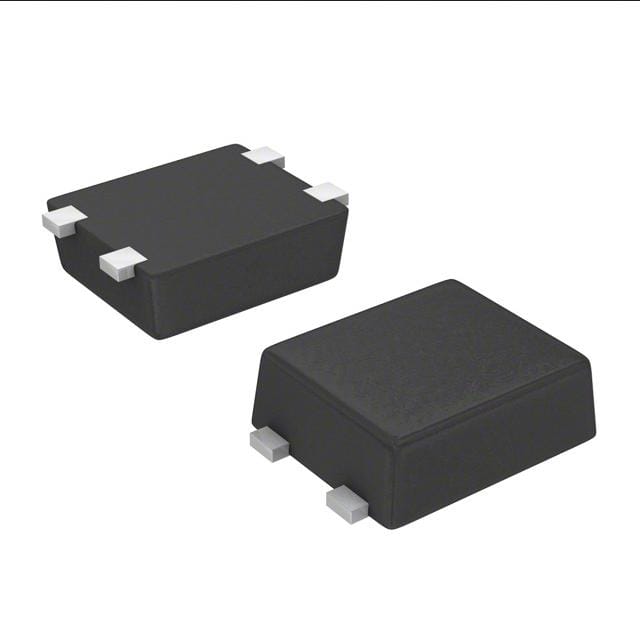

RF TRANS NPN 8V 16GHZ SC82FL/MCP
Product Attributes:
| Series | - |
| Product Status | Active |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 8V |
| Frequency - Transition | 16GHz |
| Noise Figure (dB Typ @ f) | 1.8dB @ 1GHz |
| Gain | 17.5dB |
| Power - Max | 400mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 50mA, 5V |
| Current - Collector (Ic) (Max) | 150mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | SC-82FL/MCPH4 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
