onsemi NTGD4167CT1GOSTR-ND,NTGD4167CT1GOSCT-ND,NTGD4167CT1GOSDKR-ND
Sku: TT-DKEY-NTGD4167CT1GOSTR-ND,NTGD4167CT1GOSCT-ND,NTGD4167CT1GOSDKR-ND
₹64.8
Features
- Shipping in 10-12 Working Days
Description of product

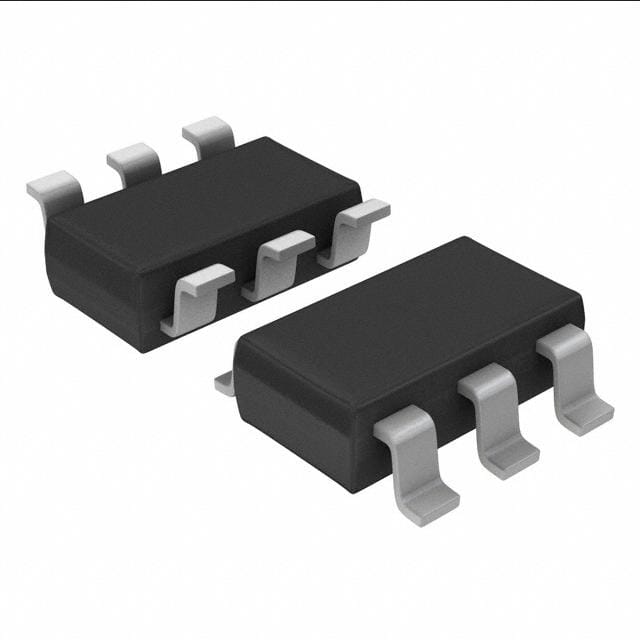

MOSFET N/P-CH 30V 2.6/1.9A 6TSOP
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A, 1.9A |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 2.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 295pF @ 15V |
| Power - Max | 900mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Grade | - |
| Qualification | - |
