The PCF8574T/3,518 is an 8-bit remote I/O Expander for I²C-bus with interrupt. It provides general-purpose remote I/O expansion via the two-wire bidirectional I²C-bus (serial clock (SCL), serial data (SDA)). The devices consist of eight quasi-bidirectional ports, 100KHz I²C-bus interface, three hardware address inputs, and interrupt output operating between 2.5 and 6V. The quasi-bidirectional port can be independently assigned as an input to monitor interrupt status or keypads or as an output to activate indicator devices such as LEDs. The low current consumption of 2.5µA (typical, static) is great for mobile applications, and the latched output ports directly drive LEDs.

Features:

1. The PCF8574T/3,518 is designed to expand the digital input/output (I/O) capabilities of microcontrollers.
2. It provides 8 bits of I/O, allowing for versatile control and sensing in electronic applications.
3. Utilizes the I2C (Inter-Integrated Circuit) protocol for efficient and standardized communication between devices.
4. Comes in a Small Outline Integrated Circuit (SOIC) package with 16 pins, facilitating compact and space-efficient integration onto circuit boards.
5. Suitable for a range of applications, including industrial automation, robotics, and other electronic systems requiring expanded I/O capabilities.
6. Manufactured by NXP, a reputable semiconductor company, ensuring reliability and performance in electronic designs.

Package Includes:

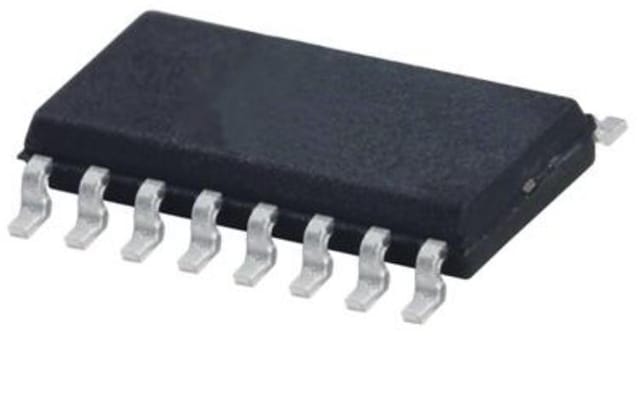

1 x PCF8574T/3,518-NXP-I/O Expander, 8 bit, I2C, 2.5 V, 6 V, SOIC, 16 Pins
