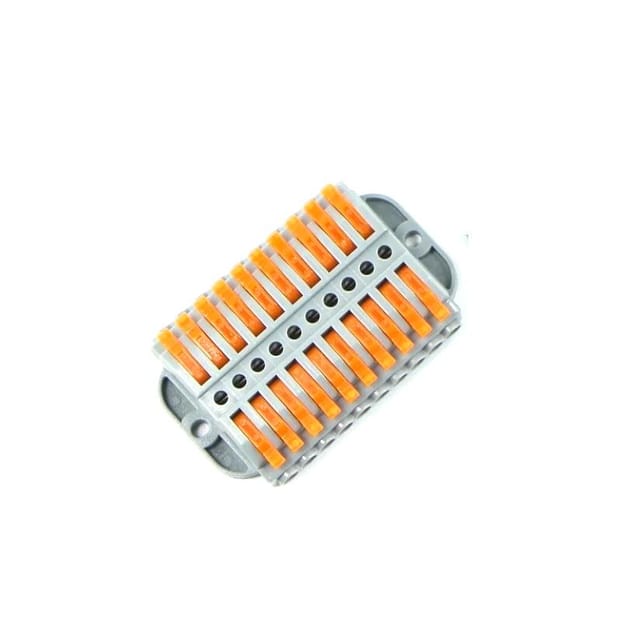

This is a PCT-223-10 0.08-2.5mm2 10 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This PCT-223-10 Stationary Type Quick Connection Terminal can tolerate the rated voltage up to 600V with an electric current peak of 32A.

These PCT-223-10 Stationary Type Quick Connection Terminal connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector
• PCT-223-8 Stationary Type Quick Connector
• LT-633(SPL-63) Stationary Type Quick Connector
• LT-933(SPL-93) Stationary, Type Quick Connector
• PCT-223-10 Stationary Type, Quick Connector
• PCT-223-12 Stationary Type, Quick Connector
• PCT-223-3 Stationary Type Quick Connector
• PCT-223-4 Stationary Type Quick Connector
• PCT-224D Guide Rail Type, Quick Connector
• PCT-225D Guide Rail Type Quick Connector
• PCT-225(SPL-5) Quick Connector

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 10-Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Specifications:

1. Rated voltage: 600V
2. Rated current: 32A
3. Number of poles: 10
4. Wire section :0.08~4.0mm2
5. Number of clamps: 20

Package Includes:

1 x PCT-223-10 Stationary Type Quick Connection Terminal
