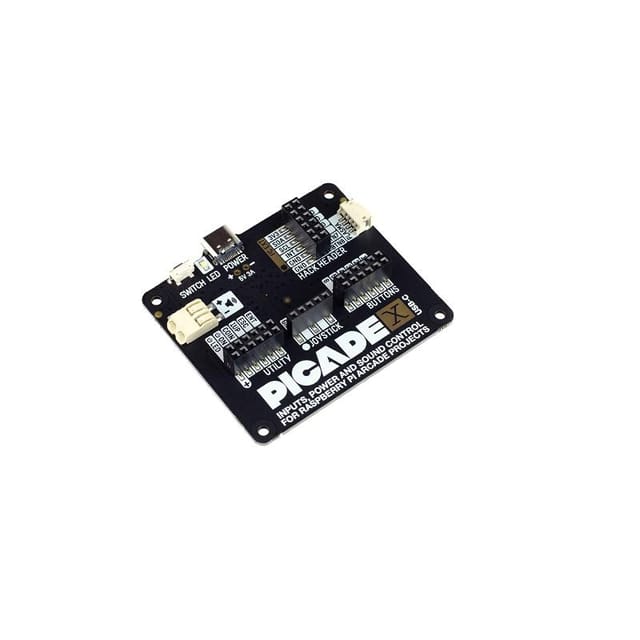

This HAT has all the same great features as the original Picade HAT but now has no-fuss female Dupont connectors to hook up your joystick and buttons.

Simply pop Picade X HAT onto your Pi, plug a USB-C power supply into the connector on the HAT (it back-powers your Pi through the GPIO, so no need for a separate power supply), wire up your controls, and install our driver! It’s ideal for your own DIY arcade cabinet builds, or for interfaces that need big, colorful buttons and sound.

Features:

1. I2S audio DAC with 3W amplifier (mono) and push-fit terminals
2. Safe power on/off the system with the tactile power button and LED
3. USB-C connector for power (back-powers your Pi)
4. 4-way digital joystick inputs
5. Six player button inputs
6. Four utility button inputs
7. One soft power switch input
8. One power LED output
9. Breakout pins for power, I2C, and 2 additional buttons
10. Compatible with all 40-pin Raspberry Pi models

Package Includes:

1 x Picade X HAT USB-C
