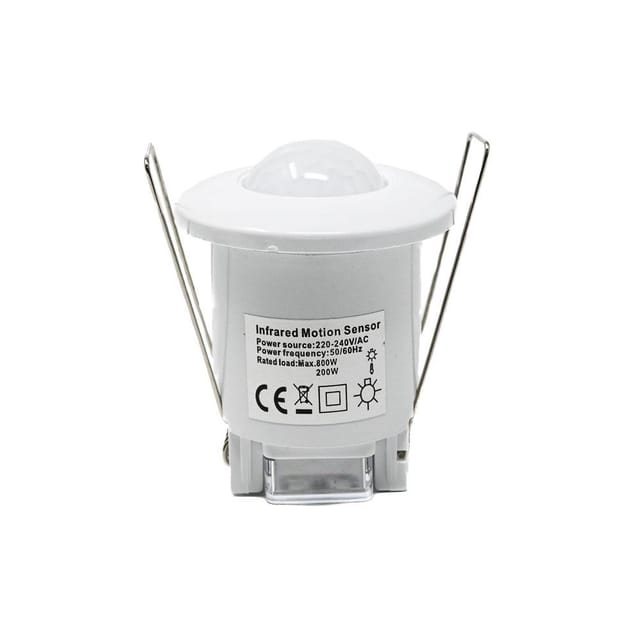

The PQ05 Human Infrared Sensor operates on AC220-240V and features 360° motion detection with a range of up to 6 meters. Designed for energy savings and security, it offers adjustable time delay (8 sec – 7 min) and light sensitivity (3-2000LUX). Made from flame-retardant materials, it ensures durability and safety. The sensor is easy to install with a simple clip-in system, making it perfect for lighting control and automated systems.

Features:

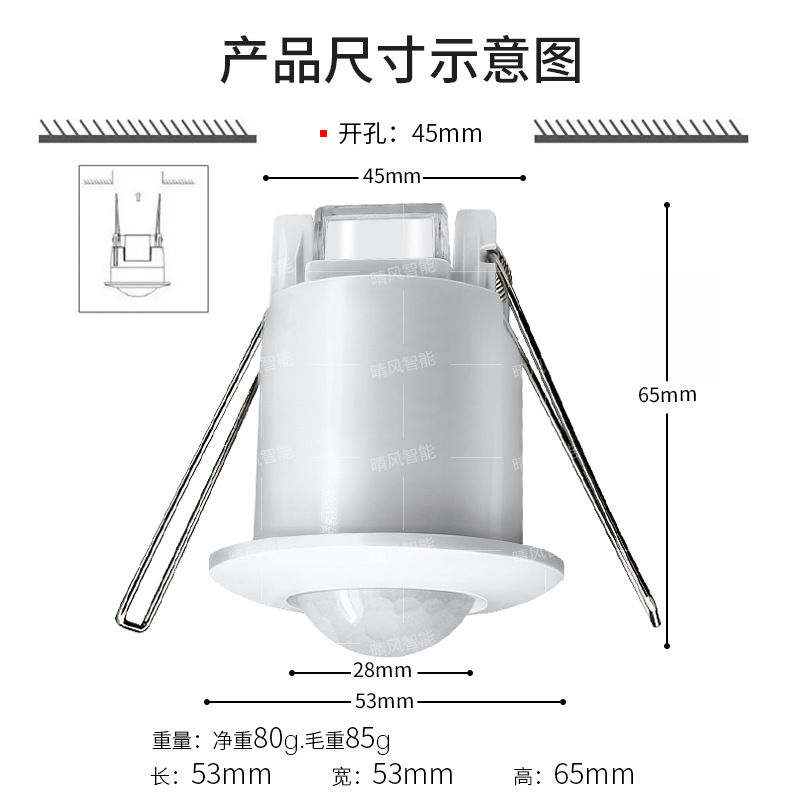

1. Ceiling Clip Installation: Quick and easy installation with a ceiling clip and wiring port.
2. Fresnel Lens: 360° detection with no blind spots and high sensitivity, focusing on moving objects for precise pyroelectric infrared signals.
3. Flame Retardant Material: Safe, durable, and resistant to fire, deformation, and oxidation.
4. Time Adjustment (TIME): Adjustable delay time (8 sec to 7 min) to control sensor activity after detecting motion.
5. Light Sensitivity (LUX): Customizable for all-day or night-only operation based on ambient light:
6. Sun Position: Works all day.
7. Moon Position: Activates at night with insufficient light.

Package Includes:

1 x PQ05 Human Infrared Sensor AC220-240V
