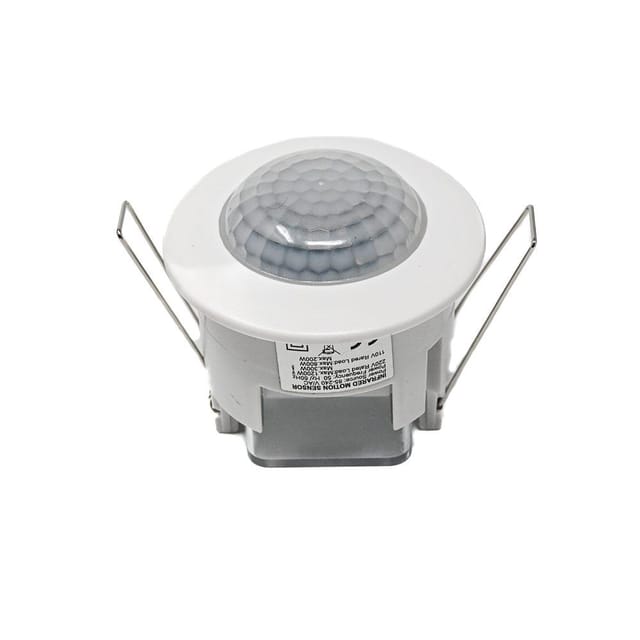

The PQ06 Human Infrared Sensor is a reliable motion-sensing device designed for automatic lighting control and energy efficiency. Operating on a wide voltage range of AC100–240V, it uses passive infrared (PIR) technology to detect human movement and instantly activate connected electrical loads such as lights.

The sensor supports adjustable settings for time delay and ambient light sensitivity, ensuring responsive performance in both day and night conditions. With its compact design, low power consumption, and easy installation, the PQ06 is ideal for residential, commercial, and industrial environments.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. 360° detection range for full coverage
2. Detection distance: up to 6 meters (<24°C)
3. Adjustable day/night sensing with SUN and MOON modes
4. Adjustable time-delay with automatic reset on continued motion
5. Low power consumption: approx. 0.5W
6. Installation height: 2.2 to 4 meters
7. Detection speed: 0.6–1.5 m/s
8. Operating temperature: -20°C to +40°C
9. Humidity tolerance: <93% RH
10. Easy to install and energy-efficient design

Package Includes:

1 x PQ06 Human Infrared Sensor AC100-240V
