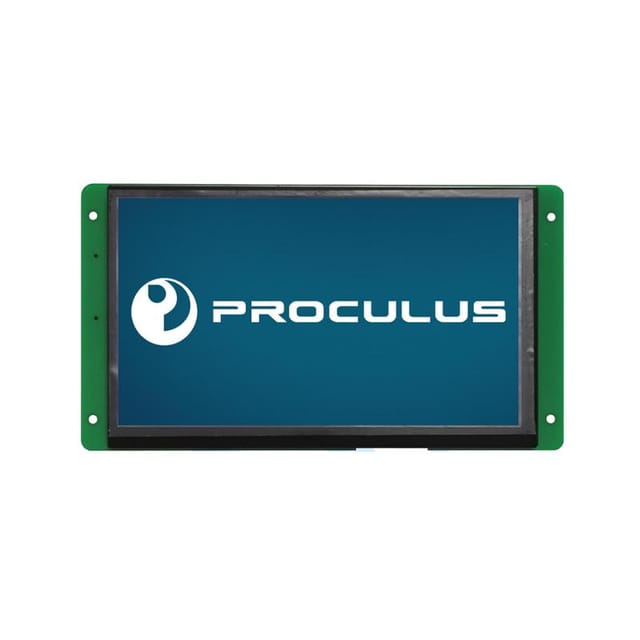

The Proculus 7-inch 800×480 UART RTP LCD Display is a vibrant, high-performance display module designed for embedded applications. Featuring a crisp 7-inch screen with a resolution of 800×480 pixels and 65K colors (16-bit, 5R6G5B), it delivers vivid, clear images and smooth touch response via its resistive touch panel (RTP). The display supports a 90° rotation mode (480×800), making it adaptable for various device orientations.

With a bright LED backlight rated at 250 cd/m² and a long lifespan of 20,000 hours, this display excels in diverse lighting conditions. It operates reliably across wide temperature ranges (-20 to +70°C) and supports UART communication with baud rates up to 921600 bps, ensuring seamless data exchange. The module includes a compact HY2.0-8P/10Pin connector and is optimized for industrial and consumer electronics applications requiring durable, high-quality visual interfaces.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Display Size: 7 inches diagonal
2. Resolution: 800 x 480 pixels (can be rotated 90° to 480 x 800)
3. Color Depth: 65K colors (16-bit, 5R6G5B)
4. Backlight: LED with 250 cd/m² brightness, 20,000 hours lifespan
5. Touch Panel: Resistive Touch Panel (RTP) for accurate touch input
6. Operating Temperature: -20°C to +70°C (storage up to 85°C)
7. Interface: UART communication with selectable baud rates (1200 to 921600 bps)
8. Power Supply: 12V DC input, typical current 210mA (backlight on)

Package Includes:

1 x Proculus 7inch 800 X 480 UART, RTP LCD Display with Touch
