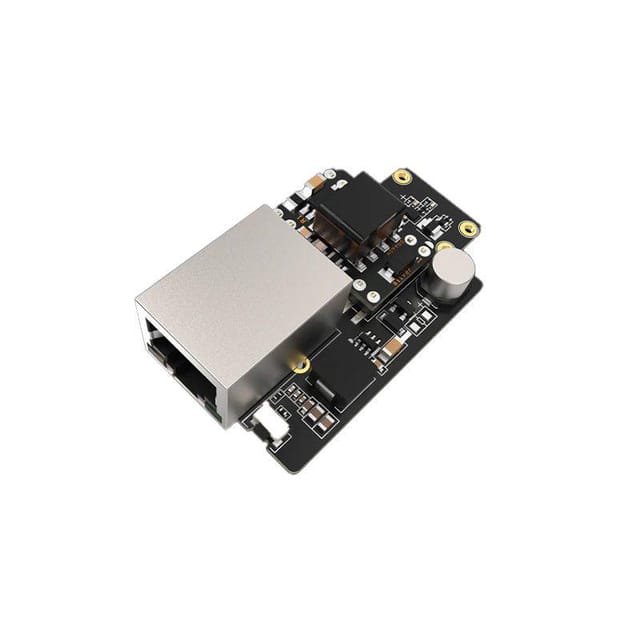

The RakWireless PoE Power Slot Module RAK19017 is a Power-over-Ethernet (PoE) Power Slot Module designed for use with the WisBlock system, enabling network connectivity and power delivery over a single Ethernet cable. This module integrates the Silvertel Ag9905MT PoE converter, providing a stable 5V output at up to 9W, making it ideal for industrial and IoT applications that require reliable and space-efficient power solutions.

Compliant with the IEEE802.3af PoE standard, the RAK19017 supports an input voltage range of 36V to 57V, offering built-in short-circuit and over-temperature protection for enhanced safety and durability. Its compact design (30mm x 50mm x 1mm) allows for easy integration into space-constrained environments.The module features a PoE Ethernet connector with two controllable LEDs and a reset button for system-level management. While it provides power via PoE, firmware flashing requires an additional USB Power Slot module such as the RAK19012.

Features :

1. Compatible with WisBlock ecosystem
2. Integrated Silvertel Ag9905MT PoE converter
3. IEEE802.3af compliant
4. Input Voltage: 36V – 57V
5. Output Voltage: 5V, Power Output: 9W
6. Short-circuit and over-temperature protection
7. Compact size: 30 x 50 x 1 mm
8. PoE Ethernet port with two LED indicators
9. Reset button for hardware control

Package Includes :

1 x RakWireless PoE Power Slot Module RAK19017
