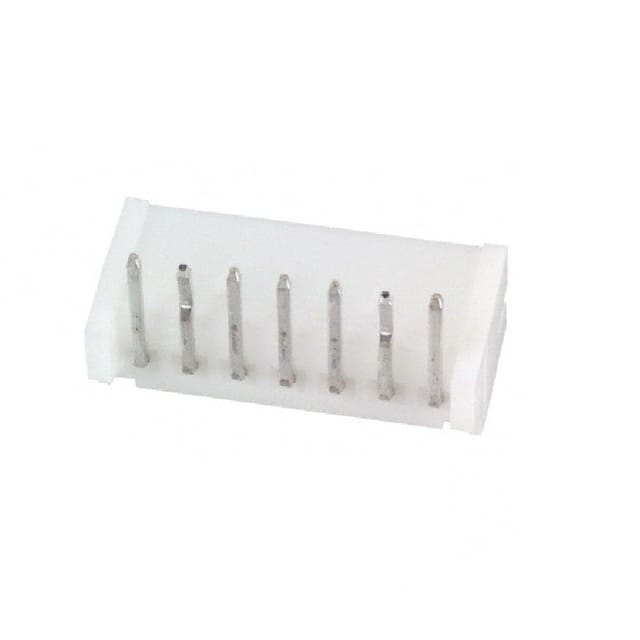

S7B-PH-K-S(LF)(SN)-JST-1x7P 7P PH Tin 7 -25℃~+85℃ 2A 1 2mm Brass Bend insert Push-Pull,P=2mm Wire To Board Connector ROHS.1x7P 7P PH Tin 7 -25℃~+85℃ 2A 1 2mm Brass Bend insert Push-Pull,P=2mm Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 7.6mm
Pins Structure: 1x7P
Number of Pins: 7P
Reference Series: PH
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 7
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 2A
Plastic Material: PA66
Colour: White
Supplementary Features: K-leg punch
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 2mm
Rated Voltage (Max): 100V
Contact Material: Brass
X-Length of Bottom Edge on Board (Spacing Line): 15.9mm
Z-Height of the Board: 4.8mm
Mounting Style: Bend insert

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x S7B-PH-K-S(LF)(SN)-JST-1x7P 7P PH Tin 7 -25℃~+85℃ 2A 1 2mm Brass Bend insert Push-Pull,P=2mm Wire To Board Connector ROHS
