Micro Commercial Co SIL2308-TPMSTR-ND,SIL2308-TPMSCT-ND,SIL2308-TPMSDKR-ND
Sku: TT-DKEY-SIL2308-TPMSTR-ND,SIL2308-TPMSCT-ND,SIL2308-TPMSDKR-ND
₹36
Features
- Shipping in 10-12 Working Days
Description of product

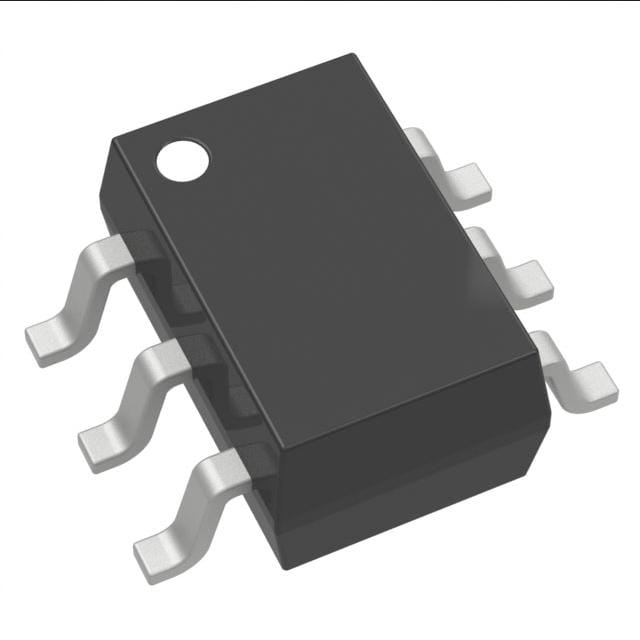

MOSFET N/P-CH 20V 5A/4A SOT23-6L
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A, 4A |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 4.5A, 4.5V, 90mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 4.5V, 12nC @ 2.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 800pF, 405pF @ 8V, 10V |
| Power - Max | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6L |
| Grade | - |
| Qualification | - |
