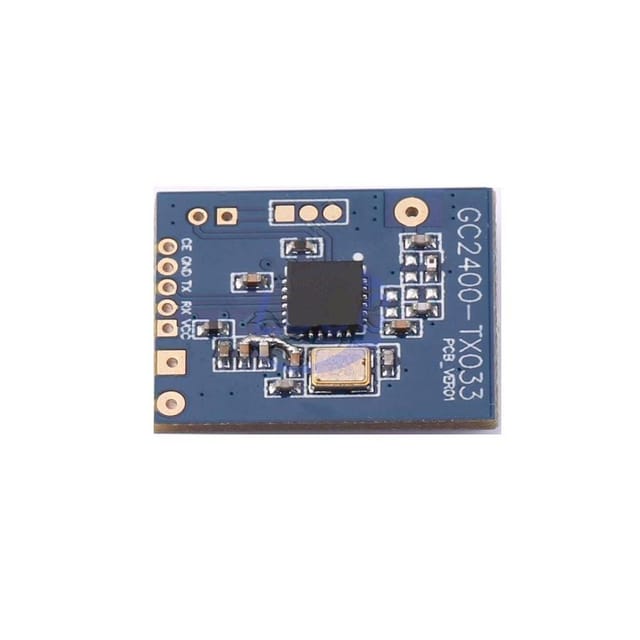

The Siliconera GC2400-TX033 SMD is a compact wireless temperature measurement module designed for the power industry. It integrates RF circuitry and CT power supply in one unit, offering high accuracy, low power consumption, and a small form factor . Operating on the 2.4GHz frequency band, it supports up to 81 channels and 6 power levels. The module features low transmission current (32mA at 10dBm) and a minimal sleep current (1µA). With serial communication for parameter configuration, it can be easily set up and used in various industrial applications, including high-voltage busbar and cabinet temperature measurement.

Features:

1. Frequency Band: 2.4GHz ISM band
2. Integration: Combines RF and power circuits in one module
3. Multi-channel Support: 81 selectable channels
4. Power Levels: 6 selectable power levels
5. Serial Communication: Configurable baud rates, with easy software setup
6. Transmission Range: Up to 50 meters (open space)
7. Operating Temperature: -40°C to 85°C

Package include:

1 x Siliconera GC2400-TX033 SMD,18.3×14.6mm Sensor Modules ROHS
