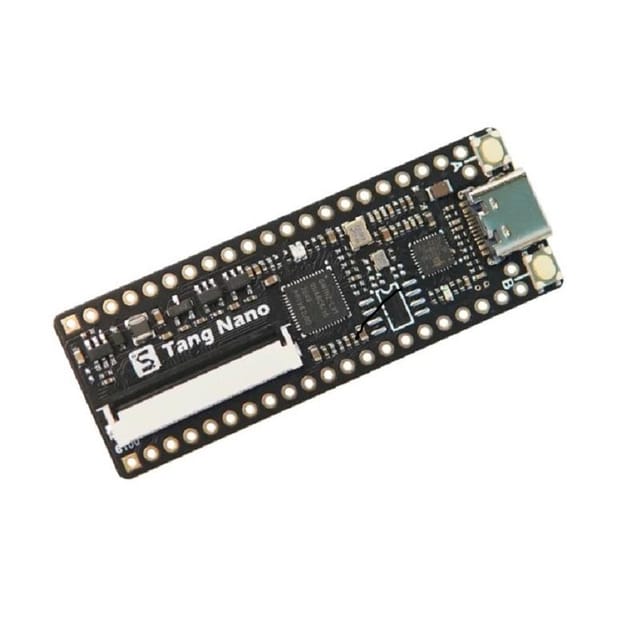

Tang Nano 1K is a development board featuring the Gowin GW1NZ-LV1 FPGA chip. With its compact design and versatile features, it’s an ideal platform for small digital logic design and experimentation. The board includes an RGB LCD interface, making it suitable for various display applications. Additionally, it comes with an onboard USB-JTAG debugger, enhancing its ease of use and facilitating efficient debugging processes.

The core of Tang Nano 1K is the Gowin GW1NZ-LV1 FPGA chip, offering 1K logic units and 1K registers. It also features 64Kb block SRAM and 128Kb user flash memory, providing sufficient storage for various applications. Equipped with two PLLs and four I/O banks, the board offers flexibility and expandability. With 44 user I/O pins, the Tang Nano 1K allows for easy interfacing with external devices, making it an excellent choice for embedded system development and educational purposes.

Features:

1. Embedded FPGA logic module unit (1152 Lut4)
2. Onboard USB-JTAG debugger
3. Onboard FPC connector and its circuit
4. Onboard wson8 pad
5. 10,000 write cycles

Package Includes:

1 x Sipeed Tang nano 1k Core board

2 x 22 Pins 2.54mm header
