5a9a7480d2103e83e5382288 TILTnSHAKE Click https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9a7480d2103e83e5382288/images/5a9a7480d2103e83e5382289/5a9a73b17cffb0838deca8a7/5a9a73b17cffb0838deca8a7.jpg

Description

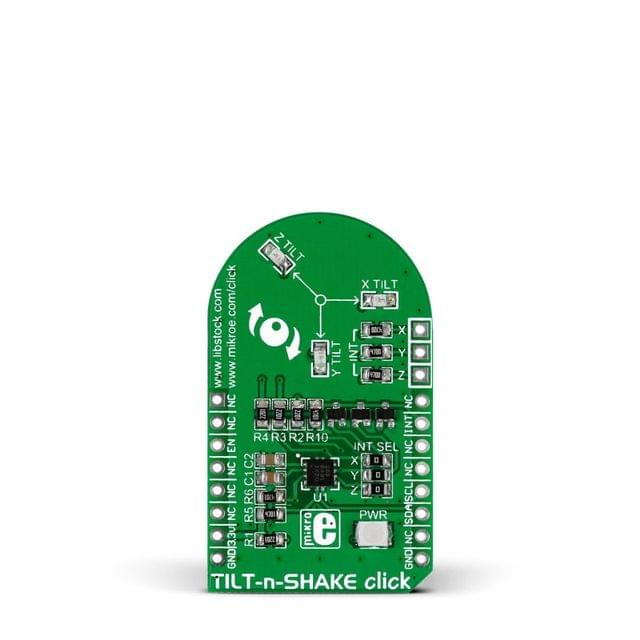

TILT-n-SHAKE click carries Freescale’s MMA8491Q IC. It’s a multifunctional 3-axis digital accelerometer that can also be configured as a 45-degree Tilt sensor. To use it as an accelerometer, keep the EN pin pulled to logic level high. The acceleration data will be outputted to the target MCU through mikroBUS™ I2C pins (SCL, SDA). The output time is about 700 microseconds, with a 14-bit resolution, ±8 full-scale range and 1 mg/LSB sensitivity. As a Tilt sensor, the click board needs only one output pin — INT (interrupt). Three onboard LEDs will also signal the tilt orientation. TILT-n-SHAKE click is designed to use a 3.3V power supply only.


Specification

Type Motion
Applications Tamper and anti-teft detection. Also, remote controls and other accelerometer applications
On-board modules   Freescale’s MMA8491Q IC 3-axis digital accelerometer
Key Features Integrated 45-degree Tilt sensor. 14-bit resolution, 1 mg/LSB sensitivity. ~700 µs output time
Key Benefits Tilt sensor configurable with jumpers. Easy to implement
Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)



    TT-MK-MIKROE-1853
    in stock INR 2503.193
    MIKROELECTRONICA
    1 1
    TILTnSHAKE Click

    TILTnSHAKE Click

    Sku: TT-MK-MIKROE-1853
    Be the first to review this product
    ₹2,503.19
    Add to Cart Buy Now
    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9a7480d2103e83e5382288/images/5a9a7480d2103e83e5382289/5a9a73b17cffb0838deca8a7/5a9a73b17cffb0838deca8a7.jpg

    Description of product

    Description

    TILT-n-SHAKE click carries Freescale’s MMA8491Q IC. It’s a multifunctional 3-axis digital accelerometer that can also be configured as a 45-degree Tilt sensor. To use it as an accelerometer, keep the EN pin pulled to logic level high. The acceleration data will be outputted to the target MCU through mikroBUS™ I2C pins (SCL, SDA). The output time is about 700 microseconds, with a 14-bit resolution, ±8 full-scale range and 1 mg/LSB sensitivity. As a Tilt sensor, the click board needs only one output pin — INT (interrupt). Three onboard LEDs will also signal the tilt orientation. TILT-n-SHAKE click is designed to use a 3.3V power supply only.


    Specification

    Type Motion
    Applications Tamper and anti-teft detection. Also, remote controls and other accelerometer applications
    On-board modules   Freescale’s MMA8491Q IC 3-axis digital accelerometer
    Key Features Integrated 45-degree Tilt sensor. 14-bit resolution, 1 mg/LSB sensitivity. ~700 µs output time
    Key Benefits Tilt sensor configurable with jumpers. Easy to implement
    Interface GPIO,I2C
    Input Voltage 3.3V
    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)
