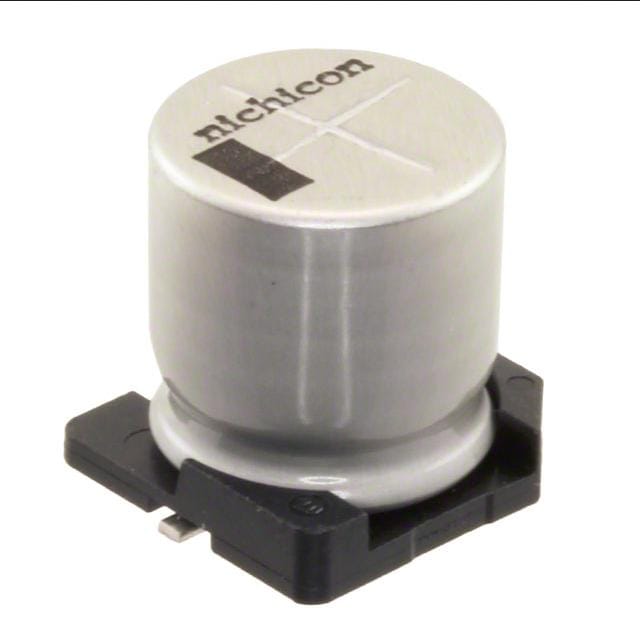

Nichicon UCZ1J221MNJ1MTR-ND,493-UCZ1J221MNJ1MSCT-ND,493-UCZ1J221MNJ1MSDKR-ND
Sku: TT-DKEY-UCZ1J221MNJ1MTR-ND,493-UCZ1J221MNJ1MSCT-ND,493-UCZ1J221MNJ1MSDKR-ND
₹308.67
Features
- Shipping in 10-12 Working Days
Description of product
CAP ALUM 220UF 20% 63V SMD
Product Attributes:
| Series | UCZ |
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
