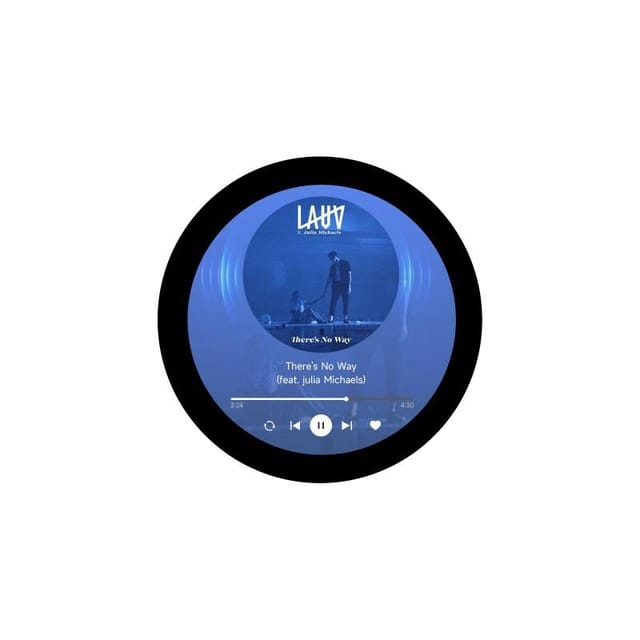

The ESP32-S3 1.85″ Round Display Development Board features a high-performance 32-bit LX7 dual-core processor running at up to 240MHz. It comes with a 1.85-inch LCD display (360×360 resolution, 262K colors) and supports both Wi-Fi (2.4GHz) and Bluetooth 5. The Round Display Development Board offers 16MB Flash, 8MB PSRAM, and is equipped with sensors like a 6-axis accelerometer and gyroscope.

It includes a capacitive touch option (via I2C) for interactive UI, multiple peripheral interfaces (GPIO, I2C, UART), and a TF card slot. Ideal for IoT, HMI, and sensor-based projects, it also supports battery management and low-power modes

Features:

1. Processor: 32-bit LX7 dual-core processor, up to 240MHz.
2. Display: 1.85″ LCD with 360×360 resolution and 262K colors.
3. Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE).
4. Memory: 16MB Flash, 8MB PSRAM, 512KB SRAM, and 384KB ROM.
5. Touch: Optional capacitive touch function (via I2C interface).
6. Sensors: Built-in 6-axis IMU (accelerometer and gyroscope), RTC sensor.
7. Audio: Onboard audio decoder, microphone, and speaker support.
8. Peripherals: Supports GPIO, I2C, UART, and TF card slot.
9. Battery Management: Includes rechargeable battery management and charge indicator.
10. Low Power: Multiple power modes for energy-efficient operation.
11. Expansion: Supports expansion of peripherals via GPIO and I2C interfaces.

Package include:

1 x ESP32-S3-LCD-1.85

1 x 2030 8Ω 2W speaker

2 x SH1.0 4PIN cable ~100mm
