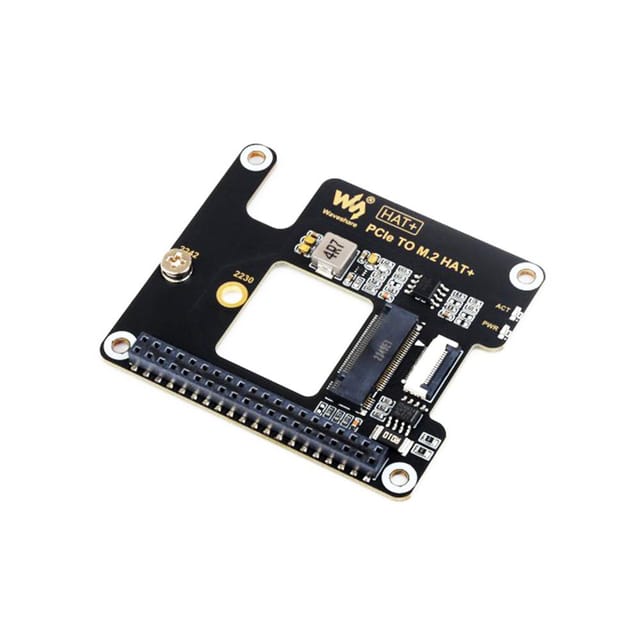

The PCIe to M.2 M key adapter board is specifically crafted for Raspberry Pi 5, enabling compatibility with NVMe protocol M.2 solid-state drives in 2230/2242 sizes. Supporting PCIe ×1 Gen2 or Gen3 modes, it ensures high-speed data transfer. With onboard indicator lights and an EEPROM chip, it offers enhanced functionality and clear operating status. Additionally, it includes a power monitoring chip and airflow vent for optimal SSD temperature control.

Image for reference only.

Image for reference only.

Features:

1. Support NVMe protocol M.2 solid state drive, high-speed read/write, with high work efficiency.
2. PCI-E×1 Gen2 or Gen3 mode.
3. Only supports PI5B.
4. Compatible with M.2 solid state drive of 2230/2242 sizes.
5. Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during
6. read/write, making the operating status clear at a glance.
7. HAT+ design, with on-board EEPROM chip.
8. Onboard power monitoring chip, for real-time monitoring of the working status of the solid-state drive.
9. Reserved airflow vent for PI5 fans, increasing airflow, and reducing solid-state temperatures.

Package Includes:

1 x Waveshare PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard
