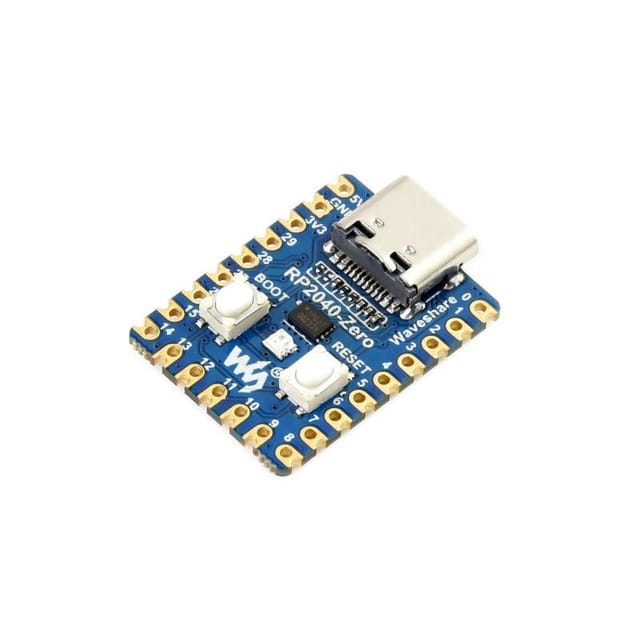

6892ed4e0805416c9e073e25 Waveshare RP2040-Zero Without Header https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6892ed4f0805416c9e073e27/rp2040-zero-2.jpg

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

What’s On Board:

  1. USB Type-C connector
  2. W25Q16JVUXIQ: 2MB NOR-Flash
  3. BOOT button: press it when resetting to enter download mode
  4. RESET button
  5. WS2812: cool RGB LED
  6. ME621: low dropout LDO, max current 800MA
  7. RP2040: dual-core processor, up to 133MHz operating frequency
  8. RP2040 pins: 10x solder points, 9 of which are for GPIOWAVESHARE RP2040 Zero details intro

Features:

  1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  3. USB-C connector, keeps it up to date, easier to use
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB
  8. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  9. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 × Programmable I/O (PIO) state machines for custom peripheral support

Useful Link:

User manual for Waveshare RP2040-Zero Without Header

Package Includes:

1 x  Waveshare RP2040-Zero Without Header





TT-RB-1174828
in stockINR 500
1 1

Waveshare RP2040-Zero Without Header

Sku: TT-RB-1174828
Be the first to review this product
₹500
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

What’s On Board:

  1. USB Type-C connector
  2. W25Q16JVUXIQ: 2MB NOR-Flash
  3. BOOT button: press it when resetting to enter download mode
  4. RESET button
  5. WS2812: cool RGB LED
  6. ME621: low dropout LDO, max current 800MA
  7. RP2040: dual-core processor, up to 133MHz operating frequency
  8. RP2040 pins: 10x solder points, 9 of which are for GPIOWAVESHARE RP2040 Zero details intro

Features:

  1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  3. USB-C connector, keeps it up to date, easier to use
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB
  8. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  9. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 × Programmable I/O (PIO) state machines for custom peripheral support

Useful Link:

User manual for Waveshare RP2040-Zero Without Header

Package Includes:

1 x  Waveshare RP2040-Zero Without Header
