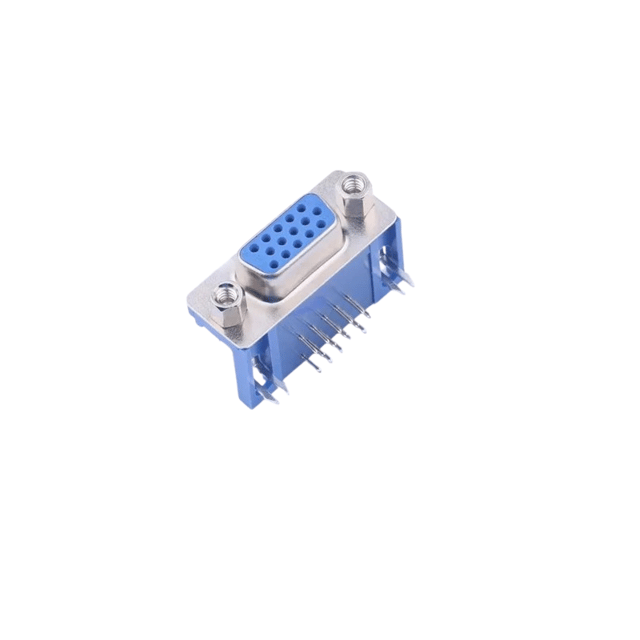

X0615FT7BL3-XKB-15P Female D-Sub Bend insert 3 5A -55℃~+105℃ Push-Pull D-Sub / VGA Connectors ROHS.

Note: Images for reference only.

Specifications:

Manufacturer: XKB Connection
Package: Through Hole,Right Angle
Number of Pins: 15P
Gender: Female
Connector Type: High Density D-Sub
Mounting Type: Right Angle
Number of Rows: 3
Color: Blue
Current Rating-Signal: 5A
Voltage Rating: 500V
Current Rating-Power: –
Operating Temperature: -55℃~+105℃

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x X0615FT7BL3-XKB-15P Female D-Sub Bend insert 3 5A -55℃~+105℃ Push-Pull D-Sub / VGA Connectors ROHS
