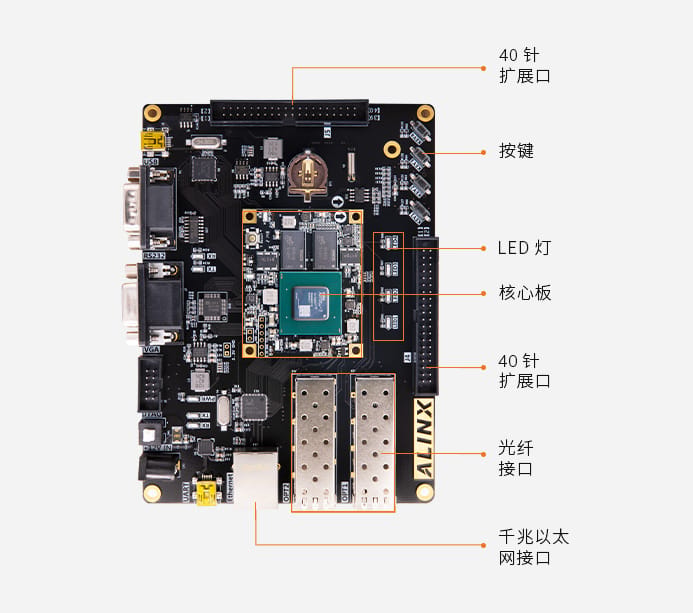

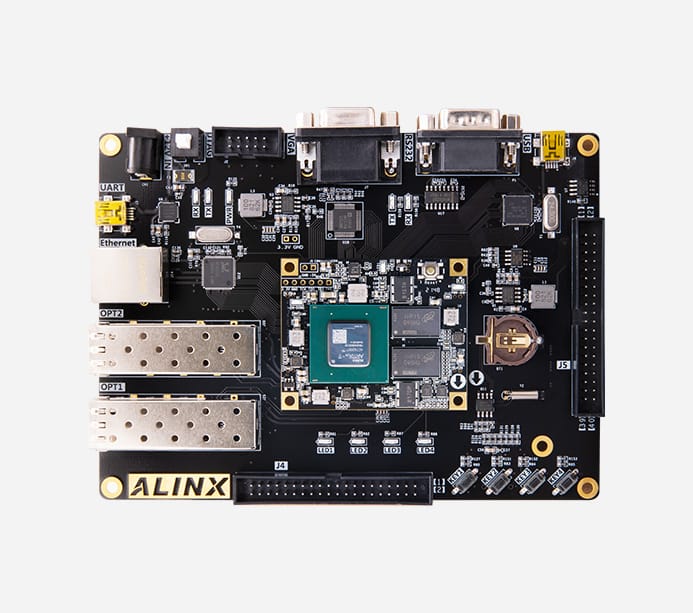

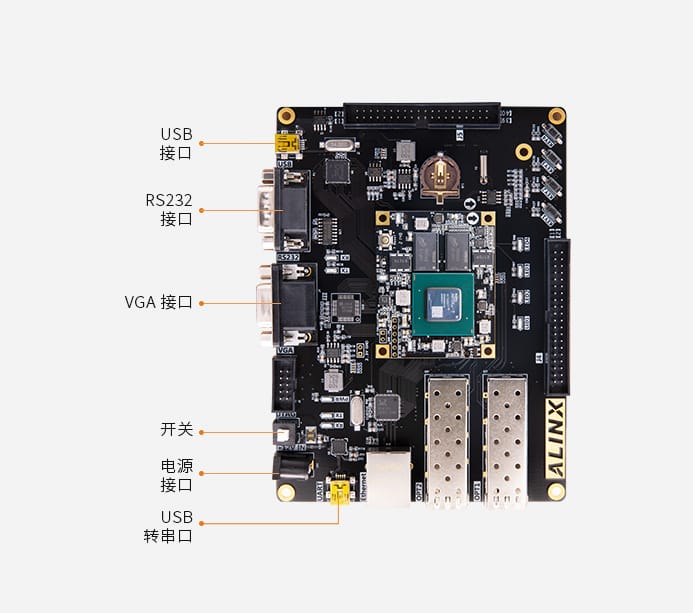

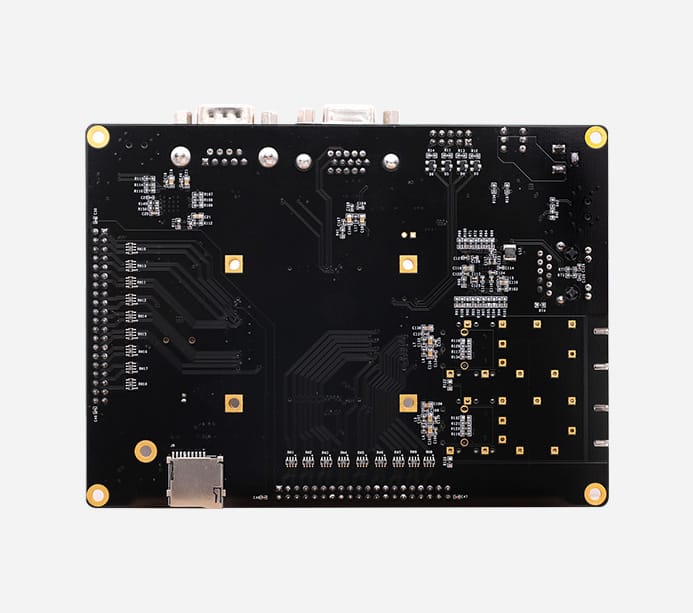

Core Board AC7200

FPGA Chip XC7A200T-2FGG484I

Speed Grades -2

Chip level Industrial grade,-40°c~85°c

RAM  1GB DDR3, 32bit

QSPI FLASH 16MB

Logic cells 215360

Look Up Tables 33650

trigger 269200

Max.Distributed RAM 2888

Block RAM (36Kb each) 365

Total Block RAM 13140kb

DSP Slices 740

Transceiver 4x 6.6Gbps

PIC Express PCIE2.0

HR IO 180

Differential pair LVDS 48

Power Connector 80pin x4

DDR3 Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

SFP Interface 2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s

Gigabit Ethernet 10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

VGA 1 channel VGA output interface, 16 bit color VGA analog output, rgb565 format

RS232 Used for Data Communication with Computer or Other Devices

USB 2.0 Used for USB 2.0 High Speed Communication with PC

USB Uart Used for Serial Communication with PC or External Devices

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220（Buy it yourself）

40-Pin Expansion Ports Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support SD Mode and SPI Mode

LED 5 User LEDs（1 LED in Core Board, 4 LEDs in the Carrier Board)

KEYs 4 User KEYs, 1 Reset Key (in the Core Board)
