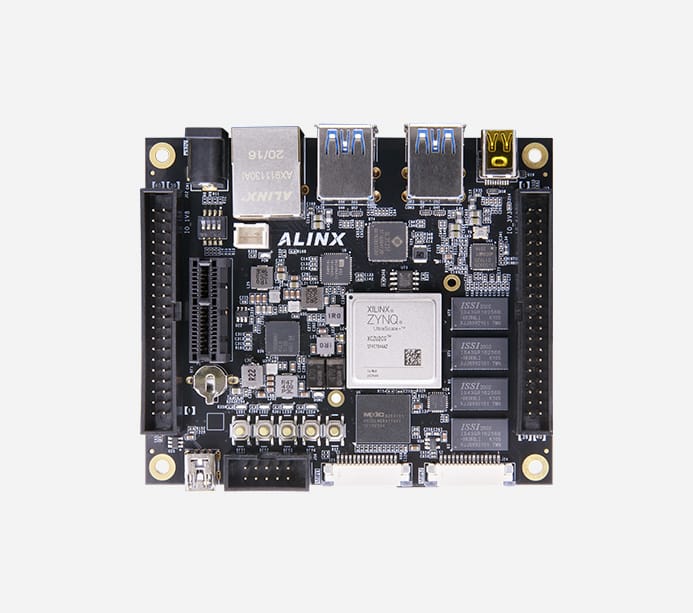

65742de1cd725840f0bc9f06 Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Evaluation Board XUZU2CG XUZU2CG https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/65742cc392e3f16248ec006e/b1.jpg

Main Parameters

FPGA Board ACU2CGB

FPGA Chip XCZU2CG-1SFVC784E

Chip CPU Dual-Core ARM Cortex-A53,1.2GHz, Dual-Core ARM Cortex™-R5, 500MHz

PS RAM 2GB DDR4,64bit 2400Mbps

Chip Level Commercial Grade

Working Temperature 0°c~70°c

Speed Grades -1

Logic Cells 103K

CLB Flip-Flops 94K

Look Up Tables (LUTs) 47K

Global Clock 3

DSP slice 240

Max. Distribu RAM 1.2Mb

BlOCK RAM 5.3Mb

eMMC FLASH 8GB

QSPI FLASH 32MB

HP I/O 1.8V34

HD I/O 3.3V34

Interface and Function

DP Interface Mini Display Port up to 4K@30Hz or 1080P@60Hz Output (ALINX customized DP to HDMI cable, need to buy Separately )

PCIE Interface Used to Connect PCIE Peripherals, Communication Speed up to 5Gbps

MIPI Interface x2 Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641

USB 3.0 x4 Used to Connect External USB Peripherals

USB Uart Used for Serial Communication with PC or External Devices

Gigabit Ethernet 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange

System Clock PS System Clock is 33.3333Mhz, PL Clock is 25Mhz ( Not with Battery )

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support SD Mode and SPI Mode

LED 5 User LEDs

KEYs 1 Reset KEY, 4 User KEYs

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).



Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET



TT-XIL-AXU2CG-E/AXU2CGB-E
in stockINR 55044.64
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Evaluation Board XUZU2CG XUZU2CG

Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Evaluation Board XUZU2CG XUZU2CG

Sku: TT-XIL-AXU2CG-E/AXU2CGB-E
₹55,044.64


Sold By: tenettech
Features
  • Shipping in 12-18 Working Days

Description of product

Main Parameters

FPGA Board ACU2CGB

FPGA Chip XCZU2CG-1SFVC784E

Chip CPU Dual-Core ARM Cortex-A53,1.2GHz, Dual-Core ARM Cortex™-R5, 500MHz

PS RAM 2GB DDR4,64bit 2400Mbps

Chip Level Commercial Grade

Working Temperature 0°c~70°c

Speed Grades -1

Logic Cells 103K

CLB Flip-Flops 94K

Look Up Tables (LUTs) 47K

Global Clock 3

DSP slice 240

Max. Distribu RAM 1.2Mb

BlOCK RAM 5.3Mb

eMMC FLASH 8GB

QSPI FLASH 32MB

HP I/O 1.8V34

HD I/O 3.3V34

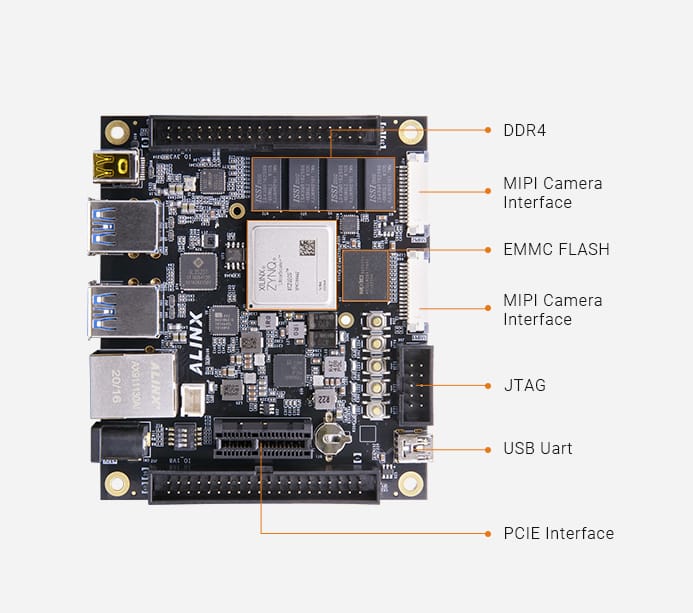

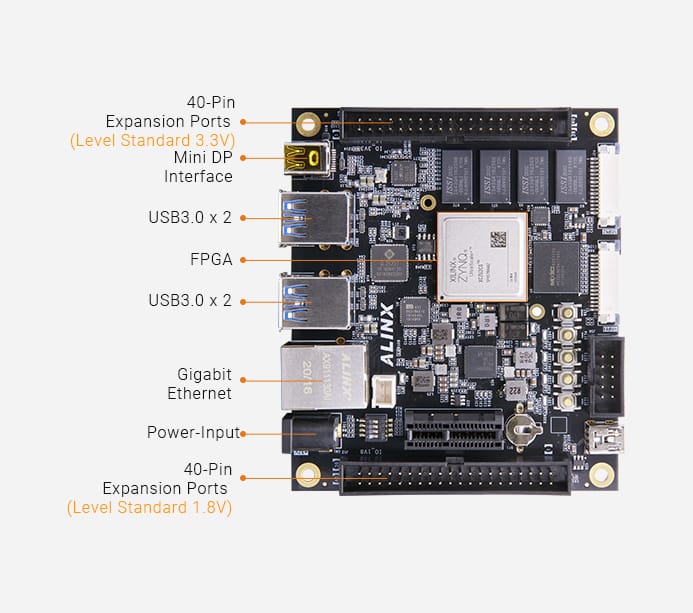

Interface and Function

DP Interface Mini Display Port up to 4K@30Hz or 1080P@60Hz Output (ALINX customized DP to HDMI cable, need to buy Separately )

PCIE Interface Used to Connect PCIE Peripherals, Communication Speed up to 5Gbps

MIPI Interface x2 Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641

USB 3.0 x4 Used to Connect External USB Peripherals

USB Uart Used for Serial Communication with PC or External Devices

Gigabit Ethernet 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange

System Clock PS System Clock is 33.3333Mhz, PL Clock is 25Mhz ( Not with Battery )

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support SD Mode and SPI Mode

LED 5 User LEDs

KEYs 1 Reset KEY, 4 User KEYs

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).



Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET
