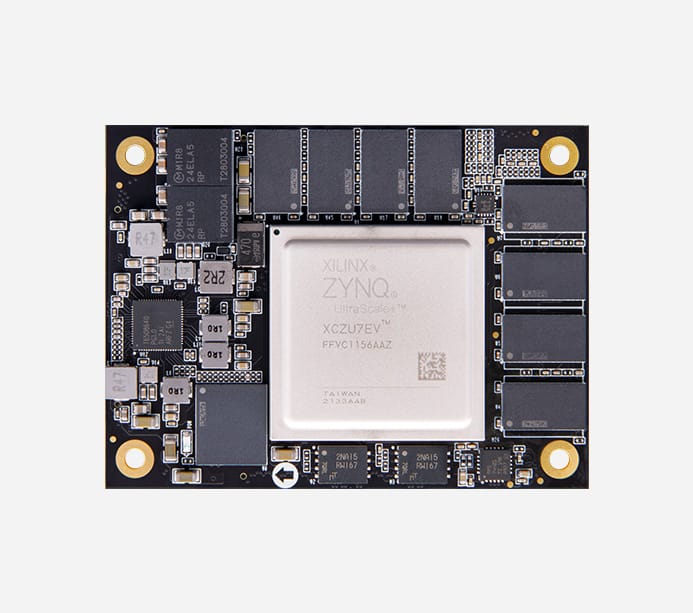

6578437d1eccc89433c1dd45 Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU7EV XCZU7EV https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/657841054fd91f5d664cfcc3/f7.jpg

Product Performance

Main Parameters

SoM Module ACU7EVC

FPGA Chip XCZU7EV-2FFVC1156I

Chip CPU 4x ARM Cortex™-A53, 1.333GHz; Cortex™-R5 x2, 533MHz

RAM PS  DDR4  4GB, 64bit, 2400Mbps PL  DDR4  4GB, 64bit, 2400Mbps

GPU Mali-400 MP2, 677MHz

Chip Level Speed Grades -2, Industrial Grade, Working Temperature -40°c~85°c

PS side High-Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection 2x USB2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

Logic Cells 504K

Look Up Tables ( LUTs ) 230.4K

Total Block RAM 11Mb

Global Clock 8

eMMC FLASH 8GB

Video Codec H.264 / H.265

Transceiver 12.5Gb/s x16

HD I/O 46

Trigger 460.8K

Max. Distributed RAM ( Mb ) 6.2Mb

UltraRAM ( Mb ) 27Mb

DSP Slices 1728

QSPI FLASH 64MB

PL PCIe Gen3 x16 2

HP I/O 142

Interface and Function

VCU 1 Video Codec Unit ( VCU ), integrated H.264 / H.265 video codec

QSPI Flash 2 Pieces totally 64 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 32.768KHz Provide RTC (Real Time Clock) for the PS system 33.333MHz Provide Clock input for the PS system 200MHz PL System Clock Source for DDR4 Controller Reference Clock

Power Supply Parameters

 Voltage Input Board to Board Connector, +12V DC

DATA SHEET







TT-XIL-ACU7EVC
in stockINR
Xilinx
1 1

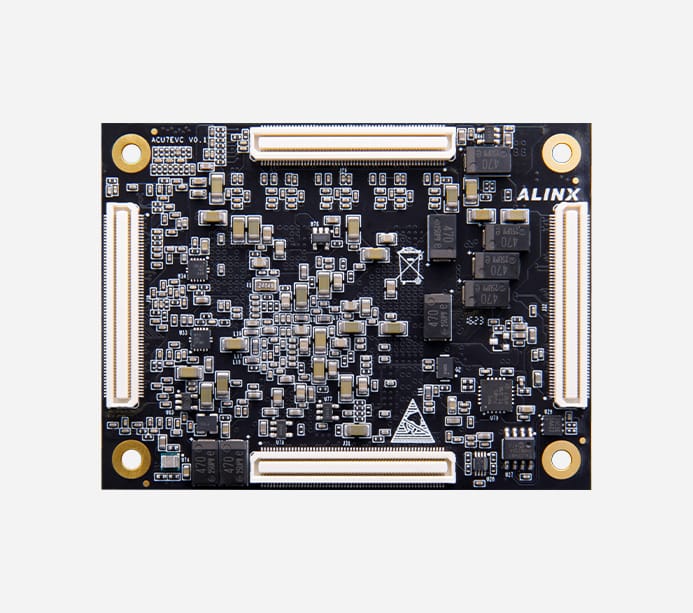

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU7EV XCZU7EV

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU7EV XCZU7EV

Sku: TT-XIL-ACU7EVC
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Performance

Main Parameters

SoM Module ACU7EVC

FPGA Chip XCZU7EV-2FFVC1156I

Chip CPU 4x ARM Cortex™-A53, 1.333GHz; Cortex™-R5 x2, 533MHz

RAM PS  DDR4  4GB, 64bit, 2400Mbps PL  DDR4  4GB, 64bit, 2400Mbps

GPU Mali-400 MP2, 677MHz

Chip Level Speed Grades -2, Industrial Grade, Working Temperature -40°c~85°c

PS side High-Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection 2x USB2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

Logic Cells 504K

Look Up Tables ( LUTs ) 230.4K

Total Block RAM 11Mb

Global Clock 8

eMMC FLASH 8GB

Video Codec H.264 / H.265

Transceiver 12.5Gb/s x16

HD I/O 46

Trigger 460.8K

Max. Distributed RAM ( Mb ) 6.2Mb

UltraRAM ( Mb ) 27Mb

DSP Slices 1728

QSPI FLASH 64MB

PL PCIe Gen3 x16 2

HP I/O 142

Interface and Function

VCU 1 Video Codec Unit ( VCU ), integrated H.264 / H.265 video codec

QSPI Flash 2 Pieces totally 64 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 32.768KHz Provide RTC (Real Time Clock) for the PS system 33.333MHz Provide Clock input for the PS system 200MHz PL System Clock Source for DDR4 Controller Reference Clock

Power Supply Parameters

 Voltage Input Board to Board Connector, +12V DC
