Diodes Incorporated ZXMHC3A01T8TR-ND,ZXMHC3A01T8CT-ND,ZXMHC3A01T8DKR-ND
Sku: TT-DKEY-ZXMHC3A01T8TR-ND,ZXMHC3A01T8CT-ND,ZXMHC3A01T8DKR-ND
₹240.48
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N/2P-CH 30V 2.7A/2A SM8
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N and 2 P-Channel (Full Bridge) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.7A, 2A |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.9nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 190pF @ 25V, 204pF @ 15V |
| Power - Max | 1.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

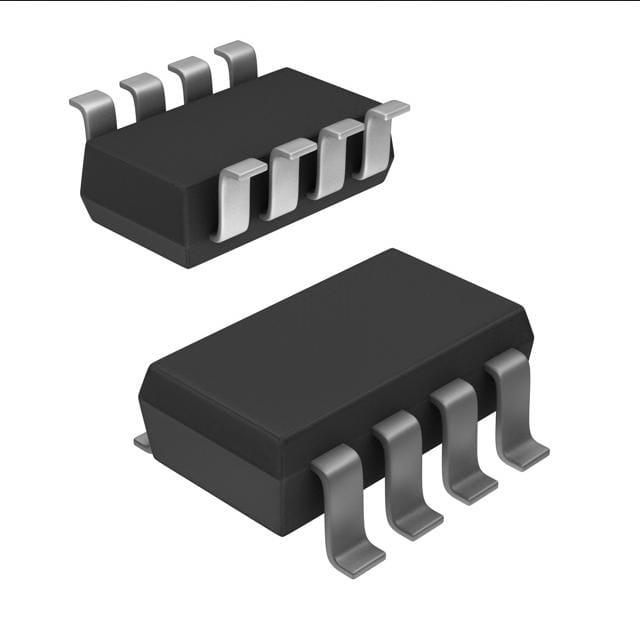

| Package / Case | SOT-223-8 |
| Supplier Device Package | SM8 |
| Grade | - |
| Qualification | - |
