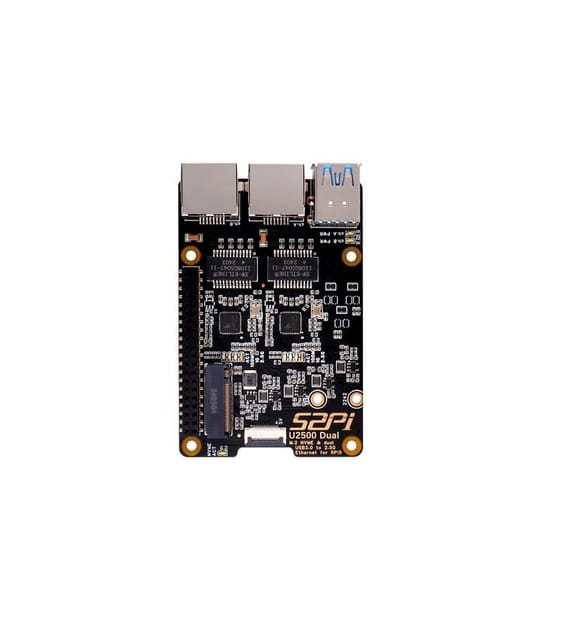

The 52Pi U2500 Dual M.2 NVME USB3.0 HAT board is a powerful expansion module for the Raspberry Pi 5, designed to enhance storage and network capabilities. With support for M.2 NVMe SSDs (2230/2242), it provides high-speed data transfer and low latency, making it ideal for demanding applications like databases and media servers. The board cleverly converts two USB 3.0 ports into Gigabit Ethernet interfaces, allowing for additional network connectivity.

Its compact design integrates seamlessly with the Raspberry Pi, ensuring a clean setup without extra cables. This HAT board significantly boosts functionality, making it perfect for projects requiring both Tenet Technetronicsst storage and networking solutions.

Features:

1. PCIe Interface Support:Utilizes a PCIe interface for expanding storage with M.2 NVMe SSDs (2230/2242 form factors), enabling high-speed data access.
2. M.2 NVMe SSD Support:Supports M.2 NVMe SSDs for rapid data transfer and low latency, ideal for databases and high-performance computing tasks.
3. USB to Ethernet Conversion:Converts two USB 3.0 ports into Gigabit Ethernet interfaces, enhancing network connectivity for web servers and IoT projects.
4. Compact and Integrated Design:Seamlessly integrates with the Raspberry Pi, eliminating the need for extra cables or adapters for a clean setup.
5. Enhanced Functionality:Combines high-speed storage and networking, making it suitable for a wide range of applications requiring both capabilities.

Package include:

1 x 52Pi U2500 Dual M.2 NVME USB3.0 To 2.5g Ethernet For Raspberry Pi 5

8 x M2.5*4mm

4 x M2.5*16mm

1 x 40 Pin PC104 Pin Header

1 x M2.5 Screw driver

2 x 8.5*40mm PCIe FFC cable

1 x Dual USB connector
