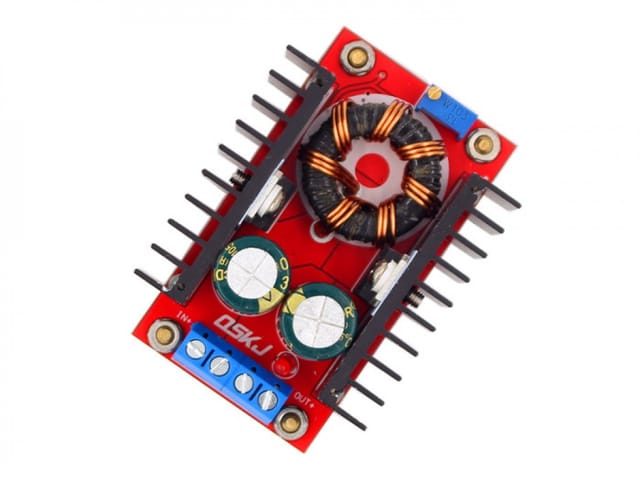

616e68a81bcc4b5dd524ffac 10-32V to 12-35V 150W DC/DC Booster https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/616e68a23932c59e55dbf4e3/webp/10-32v-to-12-35v-150w-dcdc-booster_1.jpg

Description:

This is a DC-DC boost module, the power of it up to 150 W, it can supply power to your laptop or any other 10-30v power supply. The output voltage is adjustable from 12V to 35V with max output current up to 6A. It is a good power supply module for your DIY electronics project.

Features:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage : 10-32V
  • Output voltage: 12-35V (adjustable, 2V higher than input voltage at least)
  • Output Current: 6A (MAX)
  • Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please install fuses and protection circuits at Input port.)

Package List:

  • 1 x 10-32V to 12-35V 150W DC/DC Booster

TT-MF-MPA00150W
in stockINR 349.6
Makerfabs
1 1
10-32V to 12-35V 150W DC/DC Booster

10-32V to 12-35V 150W DC/DC Booster

Sku: TT-MF-MPA00150W
₹349.6


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

This is a DC-DC boost module, the power of it up to 150 W, it can supply power to your laptop or any other 10-30v power supply. The output voltage is adjustable from 12V to 35V with max output current up to 6A. It is a good power supply module for your DIY electronics project.

Features:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage : 10-32V
  • Output voltage: 12-35V (adjustable, 2V higher than input voltage at least)
  • Output Current: 6A (MAX)
  • Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please install fuses and protection circuits at Input port.)

Package List:

  • 1 x 10-32V to 12-35V 150W DC/DC Booster
