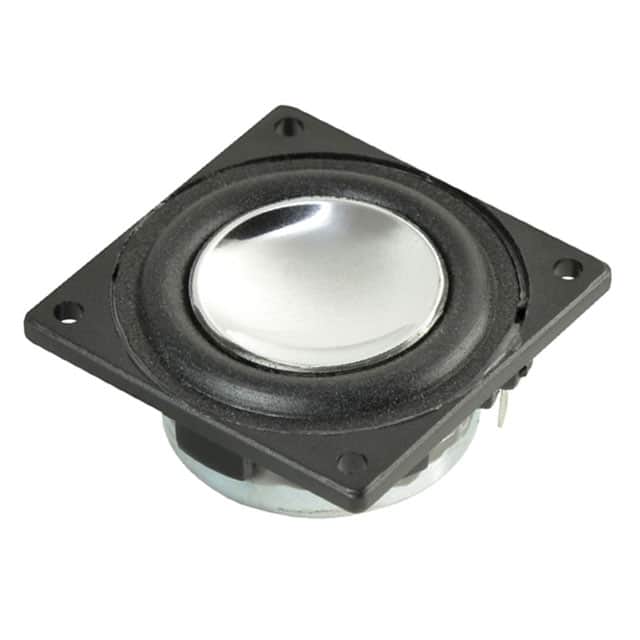

Series | CMS |
Part Status | Active |
Technology | Magnetic |
Type | General Purpose |
Frequency Range | 304 Hz ~ 10 kHz |
Frequency - Self Resonant | 380Hz |
Impedance | 8 Ohms |
Efficiency - dBA | 80.00 |
Efficiency - Testing | 1W/500mm |
Efficiency - Type | Sound Pressure Level (SPL) |
Power - Rated | 3 W |
Power - Max | 4 W |
Port Location | Top |
Shape | Round, Square Frame |
Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
Material - Magnet | Nd-Fe-B |
Ingress Protection | - |
Ratings | - |
Termination | Solder Eyelet(s) |
Size / Dimension | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
Height - Seated (Max) | 0.571" (14.50mm) |
Series | CMS |
Part Status | Active |
Technology | Magnetic |
Type | General Purpose |
Frequency Range | 304 Hz ~ 10 kHz |
Frequency - Self Resonant | 380Hz |
Impedance | 8 Ohms |
Efficiency - dBA | 80.00 |
Efficiency - Testing | 1W/500mm |
Efficiency - Type | Sound Pressure Level (SPL) |
Power - Rated | 3 W |
Power - Max | 4 W |
Port Location | Top |
Shape | Round, Square Frame |
Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
Material - Magnet | Nd-Fe-B |
Ingress Protection | - |
Ratings | - |
Termination | Solder Eyelet(s) |
Size / Dimension | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
Height - Seated (Max) | 0.571" (14.50mm) |
