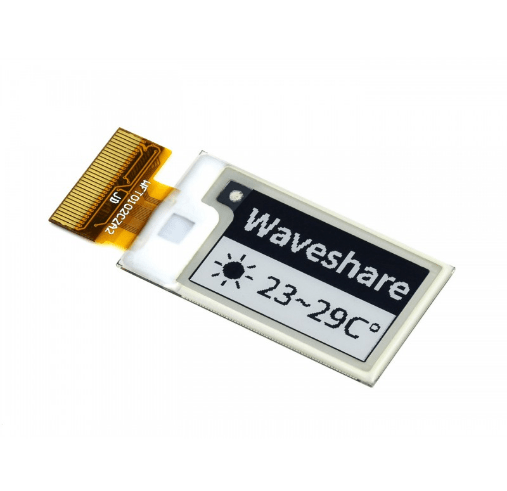

5e4e17f9ce8f5c037b814d31 128×80, 1.02inch E-Ink raw display panel, black/white dual-color https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e4e17f9ce8f5c037b814d31/images/5e4e17f9ce8f5c037b814d33/5e4e17f488fb2703c4272a6a/5e4e17f488fb2703c4272a6a.PNG

Description

This is an E-Ink raw display, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 32.6mm × 18.6mm
  • Display size: 21.76mm × 14mm
  • Dot pitch: 0.175 × 0.17
  • Resolution: 128 × 80
  • Display color: black, white
  • Grey scale: 2
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
 TT-WSK-17574
in stock INR
WAVESHARE
1 1
128×80, 1.02inch E-Ink raw display panel, black/white dual-color

128×80, 1.02inch E-Ink raw display panel, black/white dual-color

Sku: TT-WSK-17574
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e4e17f9ce8f5c037b814d31/images/5e4e17f9ce8f5c037b814d32/5e4e17f072f934037889b24f/5e4e17f072f934037889b24f.PNG

Description of product

Description

This is an E-Ink raw display, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 32.6mm × 18.6mm
  • Display size: 21.76mm × 14mm
  • Dot pitch: 0.175 × 0.17
  • Resolution: 128 × 80
  • Display color: black, white
  • Grey scale: 2
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
