611a74e133e6a164d6a91d76 CUI Devices 2223-CMS-305-158SP-67-ND https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/63fc7aad5074f60c6c894331/mfg_cms-305-158sp-67.jpg

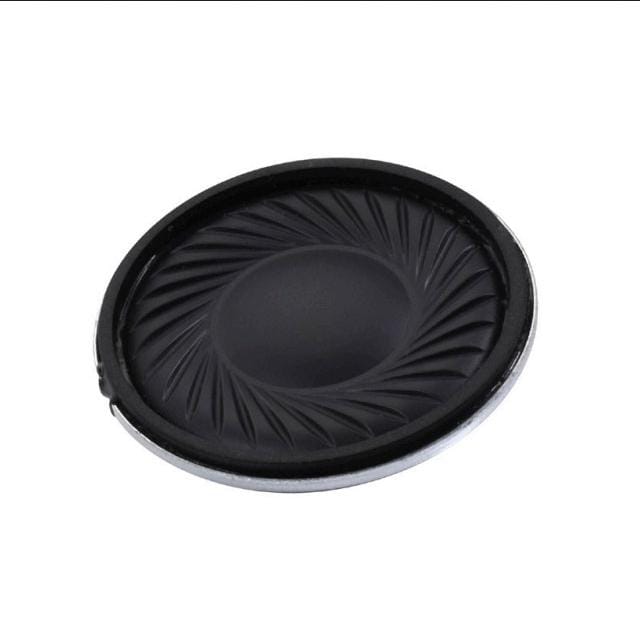

SPEAKER 8OHM 1.5W TOP PORT 90DB

Product Attributes:

SeriesCMS
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range440 Hz ~ 10 kHz
Frequency - Self Resonant550Hz
Impedance8 Ohms
Efficiency - dBA90.00
Efficiency - Testing100mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated1.5 W
Power - Max2 W
Port LocationTop
ShapeRound
Material - ConePolyethylenimine (PEI)
Material - MagnetNd-Fe-B
Ingress ProtectionIP67 - Dust Tight, Waterproof
Ratings-
TerminationSolder Pads
Size / Dimension1.181" Dia (30.00mm)
Height - Seated (Max)0.224" (5.70mm)
TT-DKEY-2223-CMS-305-158SP-67-ND
in stockINR 527.31
CUI Devices
1 1
CUI Devices 2223-CMS-305-158SP-67-ND

CUI Devices 2223-CMS-305-158SP-67-ND

Sku: TT-DKEY-2223-CMS-305-158SP-67-ND
₹527.31


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER 8OHM 1.5W TOP PORT 90DB

Product Attributes:

SeriesCMS
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range440 Hz ~ 10 kHz
Frequency - Self Resonant550Hz
Impedance8 Ohms
Efficiency - dBA90.00
Efficiency - Testing100mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated1.5 W
Power - Max2 W
Port LocationTop
ShapeRound
Material - ConePolyethylenimine (PEI)
Material - MagnetNd-Fe-B
Ingress ProtectionIP67 - Dust Tight, Waterproof
Ratings-
TerminationSolder Pads
Size / Dimension1.181" Dia (30.00mm)
Height - Seated (Max)0.224" (5.70mm)
