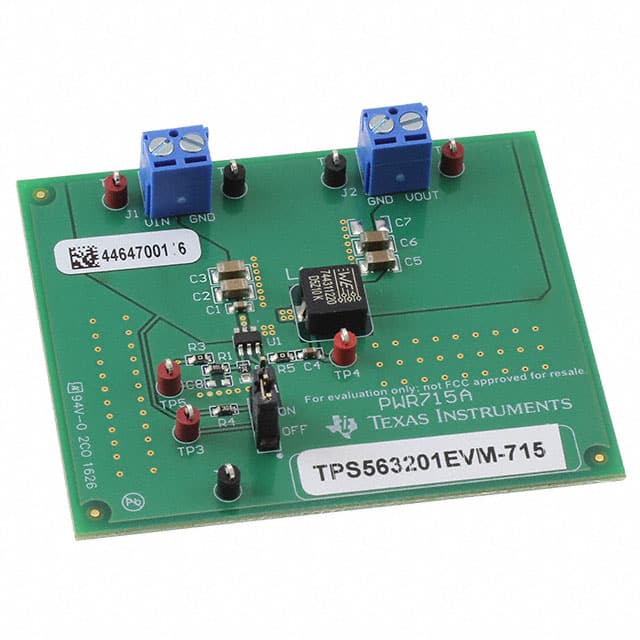

6127844c366038a821028bd0 Texas Instruments 296-46827-ND https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6127844f366038a821028c26/tps563201evm-715.jpg

EVALUATION MODULE

Product Attributes:

Series	D-CAP2™, SWIFT™
Part Status	Active
Main Purpose	DC/DC, Step Down
Outputs and Type	1, Non-Isolated
Power - Output	-
Voltage - Output	1.05V
Current - Output	3A
Voltage - Input	4.5V ~ 17V
Regulator Topology	Buck
Frequency - Switching	580kHz
Board Type	Fully Populated
Supplied Contents	Board(s)
Utilized IC / Part	TPS563201

DataSheet:

Product DataSheet

TT-DKEY-296-46827-ND

in stockINR

Texas Instruments

1 1
