6129ffabcda2ec2aee5e1a69 Sevskiy GmbH 3228-AN240203-01H-ND https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6129ffaccda2ec2aee5e1aa0/mfg_an240203-01h.jpg

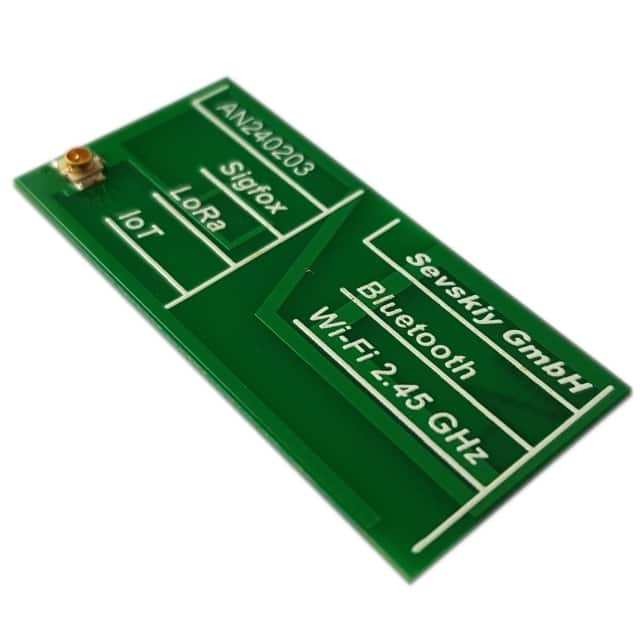

RF ANT 915MHZ/2GHZ/2.45GHZ PCB

Product Attributes:

Series AN240203
Part Status Active
RF Family/Standard Bluetooth, Cellular, General ISM, WiFi
Frequency Group UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 868MHz, 915MHz, 2GHz, 2.45GHz
Frequency Range 860MHz ~ 925MHz, 1.9GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz
Antenna Type PCB Trace
Number of Bands 4
VSWR 2, 3, 2, 3
Return Loss -10dB, -6dB, -6dB, -10dB
Gain 1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi
Power - Max 10 W
Features -
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Connector Mount
Height (Max) 0.039" (1.00mm)
Applications 3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox, Wi-Fi
TT-DKEY-3228-AN240203-01H-ND
in stock INR
Sevskiy GmbH
1 1
Sevskiy GmbH 3228-AN240203-01H-ND

Sevskiy GmbH 3228-AN240203-01H-ND

Sku: TT-DKEY-3228-AN240203-01H-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RF ANT 915MHZ/2GHZ/2.45GHZ PCB

Product Attributes:

Series AN240203
Part Status Active
RF Family/Standard Bluetooth, Cellular, General ISM, WiFi
Frequency Group UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 868MHz, 915MHz, 2GHz, 2.45GHz
Frequency Range 860MHz ~ 925MHz, 1.9GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz
Antenna Type PCB Trace
Number of Bands 4
VSWR 2, 3, 2, 3
Return Loss -10dB, -6dB, -6dB, -10dB
Gain 1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi
Power - Max 10 W
Features -
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Connector Mount
Height (Max) 0.039" (1.00mm)
Applications 3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox, Wi-Fi
