5a8fd6ca39fa2bc624698909 3G-EA Click (for EU and Australia) https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a8fd6ca39fa2bc624698909/images/5a8fd6ca39fa2bc62469890a/5a8fd4e98f3b46d24db606bd/5a8fd4e98f3b46d24db606bd.jpg

Description

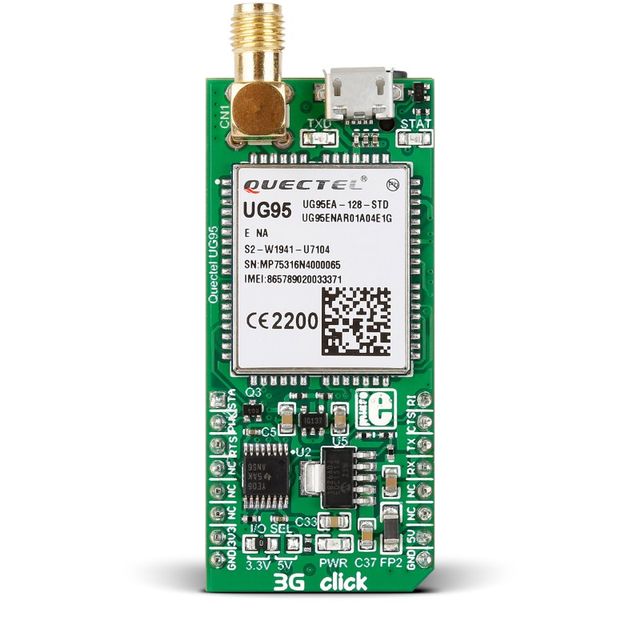

3G click (for Europe and Australia) is a mikroBUS™ add-on board with Quectel’s UG95 3G UMTS/HSPA module. The board has a rich set of components to simplify development: an SMA connector, earphone/microphone jack, MicroUSB port, as well as a SIM card slot. The UG95 module specifies data rates of up to 7.2Mbps (HSPA), and 384Kbps (UMTS). The network protocol stack includes support for TCP, UDP, PPP, MMS, FTP, SMTP, SMTPS, HTTP, HTTPS, PING, and SSL. This version operates on European frequency bands (900/2100@UMTS, 900/1800@GSM). An American version of the same board is available separately. 3G click communicates with the target MCU through the mikroBUS™ UART interface (RX, TX), with additional functionality provided by STAT, PWRKEY, RTS, R1, and CTS pins. The board is designed to use 3.3V and 5V power supply. Note: Antenna sold separately.

Specification

TypeGSM
ApplicationsAlready in use for several years, 3G is set to surpass the GSM standard for wireless mobile communications
On-board modulesQuectel’s UG95 3G UMTS/HSPA module
Key FeaturesHSPA data rates: 7.2Mbps download, 5.76Mbps upload, Protocol stack: TCP/UDP/PPPI/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL
Key BenefitsOn-board SMA connector, SIM card slot, Micro USB port, Eearphone/Mic jack
InterfaceGPIO,UART
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeL (57.15 x 25.4 mm)


Features and usage notes

Due to the nature of the protocol, 3G click comes in two different versions. The Europe and Australia version operates on the 900/2100@UMTS, 900/1800@GSM frequency band, while the USA version works on 850/1900@UMTS frequency band. The boards are otherwise identical. An onboard jumper allows you to choose the I/O voltage levels between 3.3V and 5V. Signal LEDs show the status of the data transmission. The following are data rates the UG95 module can achieve using various supported protocols: - HSPA: 7.2 Mbps (DL)/ 5.76 Mbps (UL) - UMTS: 384 Kbps (DL)/ 384 Kbps (UL) - GPRS: 85.6 Kbps (DL)/ 85.6 Kbps (UL) - EDGE: 236.8 Kbps (DL)

    TT-MK-MIKROE-2226
    in stockINR 11725.483
    MIKROELECTRONICA
    1 1
    3G-EA Click (for EU and Australia)

    3G-EA Click (for EU and Australia)

    Sku: TT-MK-MIKROE-2226
    Be the first to review this product
    ₹11,725.48
    Add to Cart Buy Now
    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a8fd6ca39fa2bc624698909/images/5a8fd6ca39fa2bc62469890a/5a8fd4e98f3b46d24db606bd/5a8fd4e98f3b46d24db606bd.jpg

    Description of product

    Description

    3G click (for Europe and Australia) is a mikroBUS™ add-on board with Quectel’s UG95 3G UMTS/HSPA module. The board has a rich set of components to simplify development: an SMA connector, earphone/microphone jack, MicroUSB port, as well as a SIM card slot. The UG95 module specifies data rates of up to 7.2Mbps (HSPA), and 384Kbps (UMTS). The network protocol stack includes support for TCP, UDP, PPP, MMS, FTP, SMTP, SMTPS, HTTP, HTTPS, PING, and SSL. This version operates on European frequency bands (900/2100@UMTS, 900/1800@GSM). An American version of the same board is available separately. 3G click communicates with the target MCU through the mikroBUS™ UART interface (RX, TX), with additional functionality provided by STAT, PWRKEY, RTS, R1, and CTS pins. The board is designed to use 3.3V and 5V power supply. Note: Antenna sold separately.

    Specification

    TypeGSM
    ApplicationsAlready in use for several years, 3G is set to surpass the GSM standard for wireless mobile communications
    On-board modulesQuectel’s UG95 3G UMTS/HSPA module
    Key FeaturesHSPA data rates: 7.2Mbps download, 5.76Mbps upload, Protocol stack: TCP/UDP/PPPI/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL
    Key BenefitsOn-board SMA connector, SIM card slot, Micro USB port, Eearphone/Mic jack
    InterfaceGPIO,UART
    Input Voltage3.3V or 5V
    CompatibilitymikroBUS
    Click board sizeL (57.15 x 25.4 mm)


    Features and usage notes

    Due to the nature of the protocol, 3G click comes in two different versions. The Europe and Australia version operates on the 900/2100@UMTS, 900/1800@GSM frequency band, while the USA version works on 850/1900@UMTS frequency band. The boards are otherwise identical. An onboard jumper allows you to choose the I/O voltage levels between 3.3V and 5V. Signal LEDs show the status of the data transmission. The following are data rates the UG95 module can achieve using various supported protocols: - HSPA: 7.2 Mbps (DL)/ 5.76 Mbps (UL) - UMTS: 384 Kbps (DL)/ 384 Kbps (UL) - GPRS: 85.6 Kbps (DL)/ 85.6 Kbps (UL) - EDGE: 236.8 Kbps (DL)
