Portescap 403-1024-ND
Sku:
TT-DKEY-403-1024-ND
₹5,266.13
SIZE GUIDE
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product

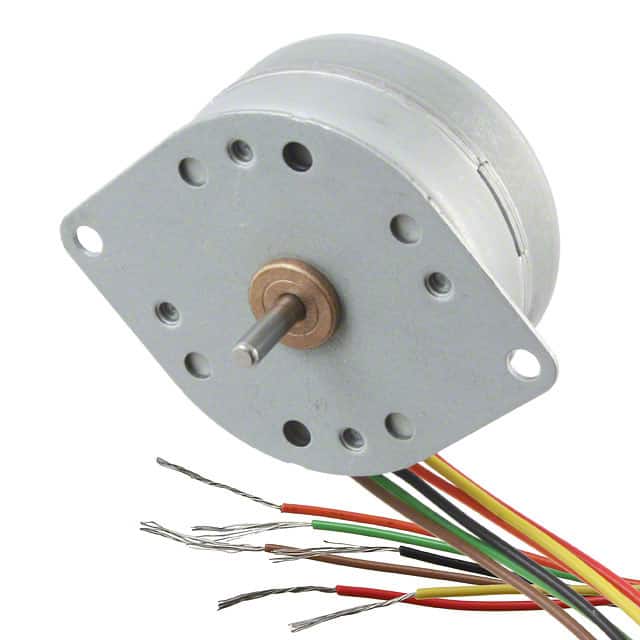

STEPPER MOTOR PM UNIPOLAR 5V
Product Attributes:
| Series | 42L |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 960 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 15.1 / 106 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 5.2 Ohms |
| Features | Round Shaft |
