5a94061c5f1375a14721ce21 4G LTE-NA click (North America) https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a94061c5f1375a14721ce21/images/5a94061c5f1375a14721ce22/5a94031fabfa27a17283588f/5a94031fabfa27a17283588f.jpg

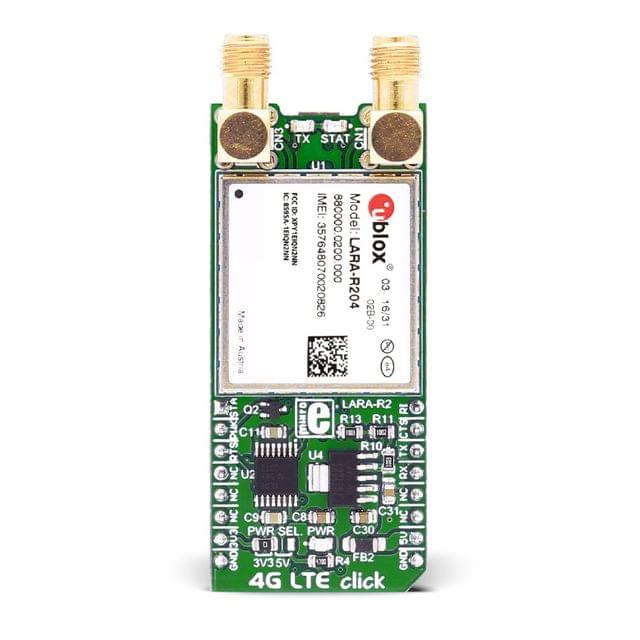

4G LTE-NA click carries the LARA-R204 multi-mode cellular module from u-blox. The board is designed to use 5V power supply. I/O voltage levels could be 3.3V or 5V. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT.

Specifications

TypeGSM
Applicationsmedium speed M2M applications, such as smart energy gateways, remote access video cameras, digital signage, telehealth, and telematics, and more
MCULARA-R204 cellular module from u-blox
Key FeaturesData rates of up to 10.3 Mb/s for Download, Data rates of up to 5.2 Mb/s for Upload, Covering the following LTE bands: 4,13; Micro SIM card socket, SMA antenna connectors, micro USB connector
InterfaceUART,GPIO
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeL (57.15 x 25.4 mm)

TT-MK-MIKROE-2535
in stockINR 15150.905
MIKROELECTRONICA
1 1
4G LTE-NA click (North America)

4G LTE-NA click (North America)

Sku: TT-MK-MIKROE-2535
Be the first to review this product
₹15,150.91
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a94061c5f1375a14721ce21/images/5a94061c5f1375a14721ce22/5a94031fabfa27a17283588f/5a94031fabfa27a17283588f.jpg

Description of product

4G LTE-NA click carries the LARA-R204 multi-mode cellular module from u-blox. The board is designed to use 5V power supply. I/O voltage levels could be 3.3V or 5V. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT.

Specifications

TypeGSM
Applicationsmedium speed M2M applications, such as smart energy gateways, remote access video cameras, digital signage, telehealth, and telematics, and more
MCULARA-R204 cellular module from u-blox
Key FeaturesData rates of up to 10.3 Mb/s for Download, Data rates of up to 5.2 Mb/s for Upload, Covering the following LTE bands: 4,13; Micro SIM card socket, SMA antenna connectors, micro USB connector
InterfaceUART,GPIO
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeL (57.15 x 25.4 mm)
