- Home
- Transistors
- onsemi 5556-NXH003P120M3F2PTHG-ND

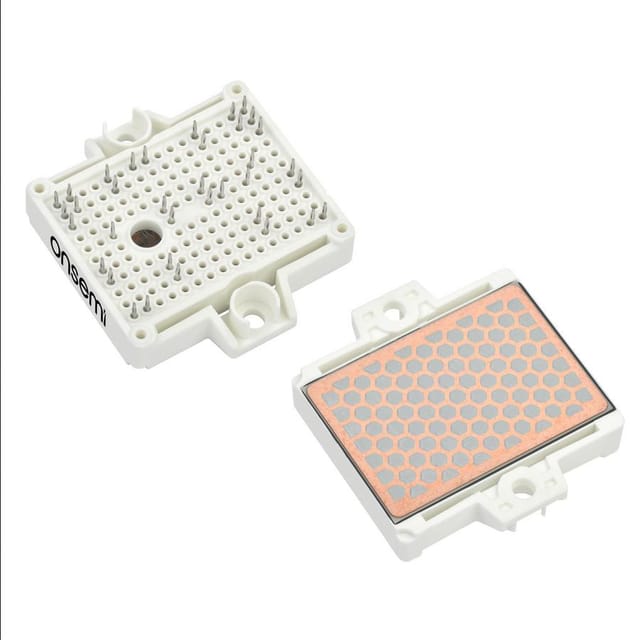

onsemi 5556-NXH003P120M3F2PTHG-ND
Sku:
TT-DKEY-5556-NXH003P120M3F2PTHG-ND
₹32,307.84
SIZE GUIDE
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
ELITESIC, 3 MOHM SIC M3S MOSFET,
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Half Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 350A (Tc) |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 200A, 18V |
| Vgs(th) (Max) @ Id | 4.4V @ 160mA |
| Gate Charge (Qg) (Max) @ Vgs | 1195nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 20889pF @ 800V |
| Power - Max | 979W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | 36-PIM (56.7x62.8) |
| Grade | - |
| Qualification | - |
