5aa3c5e29a66e885cc89d13f BIG 7-SEG R click https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa3c5e29a66e885cc89d13f/images/5aa3c5e29a66e885cc89d140/5aa3c56f696d0cb57a5a89a8/5aa3c56f696d0cb57a5a89a8.jpg

Description

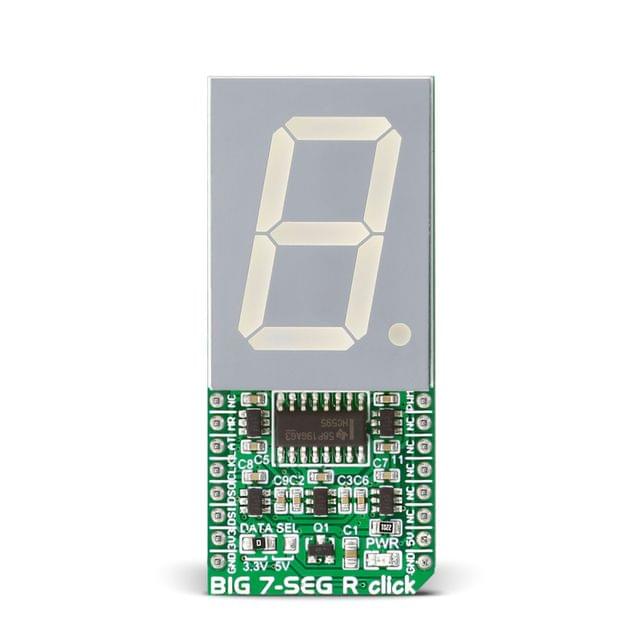

BIG 7-SEG R click is what you need if you want to add a seven-segment LED display to your project. This click features an SC10-21SRWA seven-segment display. Communication between the MCU and the SC10-21SRWA display is established via serial-IN, parallel-OUT shift register 74HC595 IC.

The click runs on either 3.3V of 5V power supply and communicates with the target MCU over an SPI interface.

Display

The click displays letters, numbers and symbols in highly readable form. It can be used in any simple interface and combined with other click boards. The color of the displayed character is red, as the R in the name of the click states.

Light intensity

The light intensity on the display is controlled via the PWM pin on the board.

Applications

Adding a seven-segment LED display to your device with SPI interface.

Specifications

Type LED Segment
Applications Adding a seven-segment LED display to your device with SPI interface
On-board modules SC10-21SRWA seven-segment display, parallel-OUT shift register 74HC595 IC
Key Features 1.0 inch digit height, Standard: grey face, white segment, Low current operation
Key Benefits Letters, numbers and symbols in highly readable form
Interface SPI,PWM,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
TT-MK-MIKROE-2269
out of stock INR
MIKROELECTRONICA
1 1
BIG 7-SEG R click

BIG 7-SEG R click

Sku: TT-MK-MIKROE-2269
Be the first to review this product
Sold Out
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa3c5e29a66e885cc89d13f/images/5aa3c5e29a66e885cc89d140/5aa3c56f696d0cb57a5a89a8/5aa3c56f696d0cb57a5a89a8.jpg

Description of product

Description

BIG 7-SEG R click is what you need if you want to add a seven-segment LED display to your project. This click features an SC10-21SRWA seven-segment display. Communication between the MCU and the SC10-21SRWA display is established via serial-IN, parallel-OUT shift register 74HC595 IC.

The click runs on either 3.3V of 5V power supply and communicates with the target MCU over an SPI interface.

Display

The click displays letters, numbers and symbols in highly readable form. It can be used in any simple interface and combined with other click boards. The color of the displayed character is red, as the R in the name of the click states.

Light intensity

The light intensity on the display is controlled via the PWM pin on the board.

Applications

Adding a seven-segment LED display to your device with SPI interface.

Specifications

Type LED Segment
Applications Adding a seven-segment LED display to your device with SPI interface
On-board modules SC10-21SRWA seven-segment display, parallel-OUT shift register 74HC595 IC
Key Features 1.0 inch digit height, Standard: grey face, white segment, Low current operation
Key Benefits Letters, numbers and symbols in highly readable form
Interface SPI,PWM,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
