Description

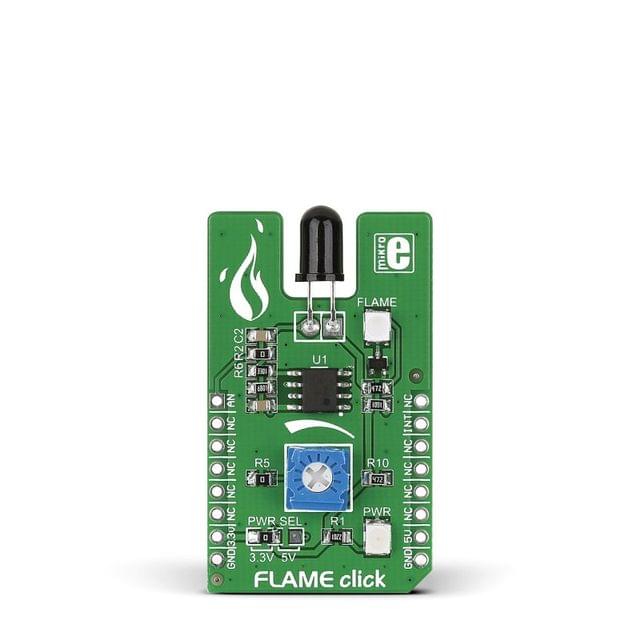

Flame click is a fire detection solution. It carries a PT334-6B silicon phototransistor that’s covered in black epoxy and therefore sensitive only to infrared light. To use it as a fire alarm, set up the exact detection threshold through the onboard potentiometer (once reached, the click will send an interrupt to the target board MCU through the mikroBUS INT pin). Othewise the sensor can also output a continuous analog signal through the mikroBUS AN pin. Flame click can use both a 3.3V or a 5V power supply.

Specification

Type Optical
Applications Properly calibrated, Flame click can be used for designing devices for a variety of security applications. Fire detectors based on phototransistors have a faster reaction time compared to smoke or heat detectors
On-board modules PT334-6B
Key Features Onboard potentiometer. Phototransistor covered in black epoxy. Uses AN and INT mikroBUS lines
Key Benefits Fast reaction time
Interface Analog,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)



    TT-MK-MIKROE-1820
    in stock INR 1580.964
    MIKROELECTRONICA
    1 1
    FLAME click

    FLAME click

    Sku: TT-MK-MIKROE-1820
    Be the first to review this product
    ₹1,580.96
    Add to Cart Buy Now
    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9a6fd1ff626e83b7d7c372/images/5a9a6fd1ff626e83b7d7c373/5a9a6f080c48d18442e8ba6b/5a9a6f080c48d18442e8ba6b.jpg

    Description of product

    Description

    Flame click is a fire detection solution. It carries a PT334-6B silicon phototransistor that’s covered in black epoxy and therefore sensitive only to infrared light. To use it as a fire alarm, set up the exact detection threshold through the onboard potentiometer (once reached, the click will send an interrupt to the target board MCU through the mikroBUS INT pin). Othewise the sensor can also output a continuous analog signal through the mikroBUS AN pin. Flame click can use both a 3.3V or a 5V power supply.

    Specification

    Type Optical
    Applications Properly calibrated, Flame click can be used for designing devices for a variety of security applications. Fire detectors based on phototransistors have a faster reaction time compared to smoke or heat detectors
    On-board modules PT334-6B
    Key Features Onboard potentiometer. Phototransistor covered in black epoxy. Uses AN and INT mikroBUS lines
    Key Benefits Fast reaction time
    Interface Analog,GPIO
    Input Voltage 3.3V or 5V
    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)
