5b163baa77fbb76b1b829e37 Grove - EMG Detector https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b163baa77fbb76b1b829e37/images/5b163baa77fbb76b1b829e38/5b163b279564306b991198fd/5b163b279564306b991198fd.jpg

Description

EMG detector is a bridge connects human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal into your control system. Note: The sensor cannot be used for medical purposes.

In standby mode, the output voltage is 1.5V. When detect muscle active, the output signal rise up, the maximum voltage is 3.3V. You can use this sensor in 3.3V or 5V system.

Features

  • Grove Compatible

  • 3.5mm Connector

  • 6 Disposable Surface Electrodes

  • Power supply voltage: 3.3V-5V

  • 1000mm Cable Leads

  • No additional power supply

Move
When finish downloading demo code, it'll take about 5s to initialize, you should keep static when initializing.
You can see that when initializing, the Led Bar will go form level 10 to level 0. When Led Bar All off, you can move now.
When you are moving, you can find that the level of Led Bar will change.


Technical Details

Dimensions 140mm x 100mm x 30mm
Weight G.W 45g
Battery Exclude

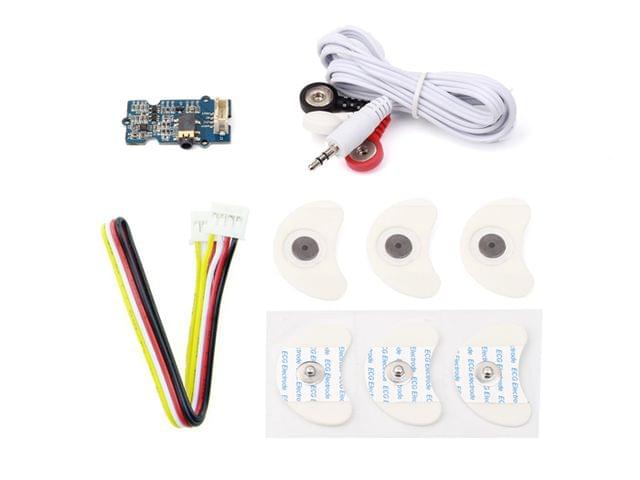

Part List

Grove - EMG Detector 1
Grove Cable 1
One-off electrode 6
DC jacket to button connector cable 1000mm 1

    TT-SS-101020058
    in stock INR
    SEEEDSTUDIO
    1 1
    Grove - EMG Detector

    Grove - EMG Detector

    Sku: TT-SS-101020058
    Be the first to review this product
    Product Enquiry
    Contact Seller Contact Seller
    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b163baa77fbb76b1b829e37/images/5b163baa77fbb76b1b829e38/5b163b279564306b991198fd/5b163b279564306b991198fd.jpg

    Description of product

    Description

    EMG detector is a bridge connects human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal into your control system. Note: The sensor cannot be used for medical purposes.

    In standby mode, the output voltage is 1.5V. When detect muscle active, the output signal rise up, the maximum voltage is 3.3V. You can use this sensor in 3.3V or 5V system.

    Features

    • Grove Compatible

    • 3.5mm Connector

    • 6 Disposable Surface Electrodes

    • Power supply voltage: 3.3V-5V

    • 1000mm Cable Leads

    • No additional power supply

    Move
    When finish downloading demo code, it'll take about 5s to initialize, you should keep static when initializing.
    You can see that when initializing, the Led Bar will go form level 10 to level 0. When Led Bar All off, you can move now.
    When you are moving, you can find that the level of Led Bar will change.


    Technical Details

    Dimensions 140mm x 100mm x 30mm
    Weight G.W 45g
    Battery Exclude

    Part List

    Grove - EMG Detector 1
    Grove Cable 1
    One-off electrode 6
    DC jacket to button connector cable 1000mm 1
