Description

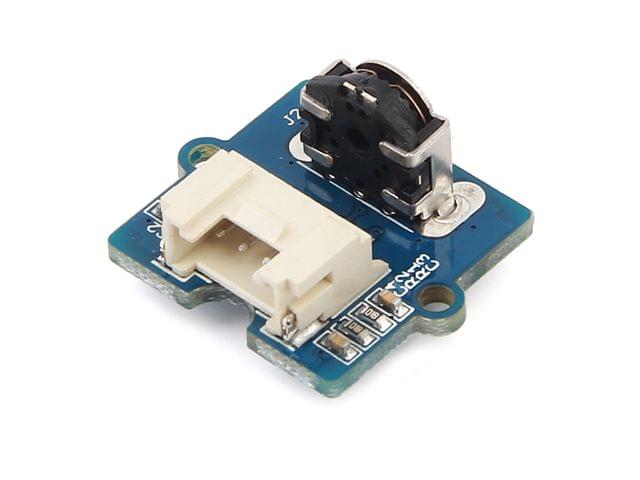

Grove - Mouser Encoder is mechanical incremental rotary encoder (A, B channel) with feedback of direction and speed[1]. It features standard Grove interface that will save your lots of work in wiring and programming. Also, it is well adapted to heavy duty and a harsh environment. This product can be applied in toys, robots, and consumer input devices.
Note that the rotating speed is designed to be less 1000 rad/min(radian per minute).
Features
-
Versatile for different environment.
-
Well adapted for heavy duty and harsh environment.
-
With detents and a nice feel.
-
Standard Grove interface for easier programming and wiring.
-
Accurate and reliable.
Specification
| Min. | Typical | Max. | |
| Operating voltage(V) | 3.3 | 5.5 | |
| Operating current(mA) | 10 | 13 | |
| Duty(constant speed) | 50% | ||
| Phase difference(constant speed) | π/4 | ||
| Pulse per circle | 12 |
Technical Details
| Dimensions | 130mm x 90mm x 18mm |
| Weight | G.W 8g |
| Battery | Exclude |
Part List
| Grove - Mouse Encoder | 1 |
- Home
- Grove - Mouse Encoder
Grove - Mouse Encoder
SIZE GUIDE
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1517f1363d043a0d59cae5/images/5b1517f1363d043a0d59cae6/5b151788b5850ea89e19c8f8/5b151788b5850ea89e19c8f8.jpg
Description of product
Description
Grove - Mouser Encoder is mechanical incremental rotary encoder (A, B channel) with feedback of direction and speed[1]. It features standard Grove interface that will save your lots of work in wiring and programming. Also, it is well adapted to heavy duty and a harsh environment. This product can be applied in toys, robots, and consumer input devices.
Note that the rotating speed is designed to be less 1000 rad/min(radian per minute).
Features
-
Versatile for different environment.
-
Well adapted for heavy duty and harsh environment.
-
With detents and a nice feel.
-
Standard Grove interface for easier programming and wiring.
-
Accurate and reliable.
Specification
| Min. | Typical | Max. | |
| Operating voltage(V) | 3.3 | 5.5 | |
| Operating current(mA) | 10 | 13 | |
| Duty(constant speed) | 50% | ||
| Phase difference(constant speed) | π/4 | ||
| Pulse per circle | 12 |
Technical Details
| Dimensions | 130mm x 90mm x 18mm |
| Weight | G.W 8g |
| Battery | Exclude |
Part List
| Grove - Mouse Encoder | 1 |
