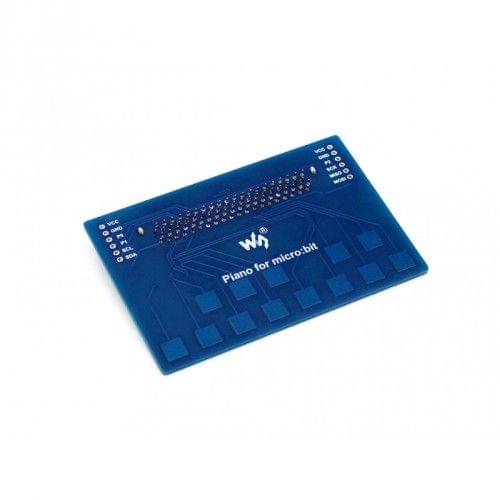

Mini Piano Module for micro:bit, Touch Keys to Play Music
https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1ba13a192832b1a8a69f78/images/5e2c10c102a8d4519700e563/5e2c10a01d060f5b2a5363ce/5e2c10a01d060f5b2a5363ce.jpg
TT-WS-14205
Overview
Isn't it coooool to play your favorite song using the BBC micro:bit? Just plug it into this little piano, and enjoy.
Features
- micro:bit edge connector, directly pluggable
- Buzzer to play music
- Onboard capacitive touch controller, 13x touch keys through I2C interface
- 4x RGB LEDs, controlled by only one signal pin
- Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion
- Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
- Touch controller: TTP229
- LED: WS2812B
- LED color depth: 16777216 colors
- Dimension: 85mm x 56mm
- Operating voltage: 3.3V
Pinouts
| Symbol | Description |
|---|---|
| VCC | Power (3.3V input) |
| GND | Ground |
| P0 | Buzzer control pin, related to mcro:bit P0 |
| P1 | LED control pin, related to mcro:bit P1 |
| SCL | Touch keys control pin, I2C clock |
| SDA | Touch keys control pin, I2C data |
Dimensions
in stock
INR
WAVESHARE
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- Mini Piano Module for micro:bit, Touch Keys to Play Music
Mini Piano Module for micro:bit, Touch Keys to Play Music
Sku:
TT-WS-14205
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1ba13a192832b1a8a69f78/images/5e2c10c102a8d4519700e560/5e2c10b95a6a1a519141ab3e/5e2c10b95a6a1a519141ab3e.jpg
Description of product
Overview
Isn't it coooool to play your favorite song using the BBC micro:bit? Just plug it into this little piano, and enjoy.
Features
- micro:bit edge connector, directly pluggable
- Buzzer to play music
- Onboard capacitive touch controller, 13x touch keys through I2C interface
- 4x RGB LEDs, controlled by only one signal pin
- Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion
- Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
- Touch controller: TTP229
- LED: WS2812B
- LED color depth: 16777216 colors
- Dimension: 85mm x 56mm
- Operating voltage: 3.3V
Pinouts
| Symbol | Description |
|---|---|
| VCC | Power (3.3V input) |
| GND | Ground |
| P0 | Buzzer control pin, related to mcro:bit P0 |
| P1 | LED control pin, related to mcro:bit P1 |
| SCL | Touch keys control pin, I2C clock |
| SDA | Touch keys control pin, I2C data |
Dimensions
