Measuring only 72mm by 50mm, MYIR’s MYC-SAM9X5-V2 series CPU Modules are highly-integrated low-cost controller boards for industrial and embedded applications. The modules are based on 400MHz Atmel AT91SAM9x5 series ARM9 processors: SAM9G15, SAM9G25, SAM9G35, SAM9X25 and SAM9X35. The modules include 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM and Ethernet PHY. They have two 2.0mm pitch 70-pin connectors to provide an interface to bring out all the I/O signals from the CPU Module. They are Linux and Android ready-to-run modules and support -40 to +85 Celsius Extended Temperature Operation for Industrial Applications.
- 400MHz Atmel AT91SAM9X5 Series ARM926EJ-STM Processors
- 128MB DDR2 SDRAM
- 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM
- On-board Ethernet PHY
- Two 2.0mm pitch 70-pin Expansion Connectors
- Ready-to-Run Linux 2.6.39 and Android 2.3.5 Controller Board
- Provided with Complete MDK-ARM Sample Codes
- Home
- DEVELOPMENT BOARDS AND IC's
- MYC-SAM9X5-V2 CPU Module

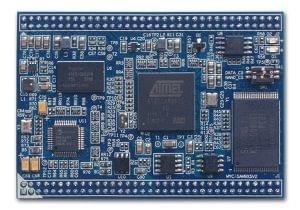

MYC-SAM9X5-V2 CPU Module
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98f2575be980c3018c901a/images/5b98f2575be980c3018c901b/5b98f2315029155fe19fb6fa/5b98f2315029155fe19fb6fa.jpg
Description of product
Measuring only 72mm by 50mm, MYIR’s MYC-SAM9X5-V2 series CPU Modules are highly-integrated low-cost controller boards for industrial and embedded applications. The modules are based on 400MHz Atmel AT91SAM9x5 series ARM9 processors: SAM9G15, SAM9G25, SAM9G35, SAM9X25 and SAM9X35. The modules include 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM and Ethernet PHY. They have two 2.0mm pitch 70-pin connectors to provide an interface to bring out all the I/O signals from the CPU Module. They are Linux and Android ready-to-run modules and support -40 to +85 Celsius Extended Temperature Operation for Industrial Applications.
- 400MHz Atmel AT91SAM9X5 Series ARM926EJ-STM Processors
- 128MB DDR2 SDRAM
- 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM
- On-board Ethernet PHY
- Two 2.0mm pitch 70-pin Expansion Connectors
- Ready-to-Run Linux 2.6.39 and Android 2.3.5 Controller Board
- Provided with Complete MDK-ARM Sample Codes
