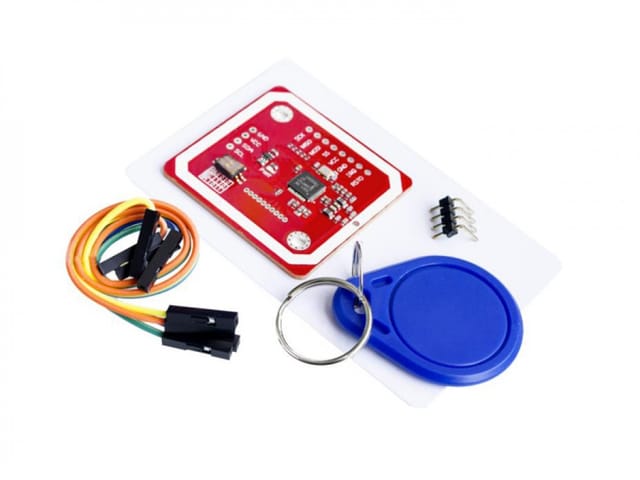

617384aba31f7a879f73f2a2 PN532 NFC Module V3 https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/61738499754a0e885f903961/webp/pn532-nfc-module-v3.jpg

Description:

NFC is a popular technology in recent years. We often heard this work while smartphone companies such as Samsung or HTC introduce their latest high-end phones. Almost all the high-end phones in the market support NFC.

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters.

For electronics geeks, we also want to use NFC technology to make our own things. So we build this NFC RFID module. This module is built around NXP PN532. NXP PN532 is very popular in the NFC area. And the company offers many technology documents to help developers. We developed this module based on the official document. And to make things easier, we also build a library for this module.

We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play. With our Arduino Sensor Shield, it is very easy to plug and play. However, if users want to use other interfaces such as UART or SPI, this module also makes it easy to connect those pins.

Features:

  • Small dimension and easy to embed into your project
  • Support I2C, SPI, and HSU (High-Speed UART), easy to change between those modes
  • Support RFID reading and writing, P2P communication with peers, NFC with Android phone
  • Up to 5cm~7cm reading distance
  • On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  • Arduino compatible, plugin and play with our shield
  • RFID reader/writer supports
  • Mifare 1k, 4k, Ultralight, and DESFire cards
  • ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
  • Innovision Jewel cards such as IRT5001 cards
  • FeliCa cards such as RCS_860 and RCS_854

Package List:

  • 1 x PN532 NFC Module V3

Documents:

TT-MF-MCR532PNR
in stock INR 1185.6
Makerfabs
1 1

PN532 NFC Module V3

Sku: TT-MF-MCR532PNR
₹1,185.6


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

NFC is a popular technology in recent years. We often heard this work while smartphone companies such as Samsung or HTC introduce their latest high-end phones. Almost all the high-end phones in the market support NFC.

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters.

For electronics geeks, we also want to use NFC technology to make our own things. So we build this NFC RFID module. This module is built around NXP PN532. NXP PN532 is very popular in the NFC area. And the company offers many technology documents to help developers. We developed this module based on the official document. And to make things easier, we also build a library for this module.

We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play. With our Arduino Sensor Shield, it is very easy to plug and play. However, if users want to use other interfaces such as UART or SPI, this module also makes it easy to connect those pins.

Features:

  • Small dimension and easy to embed into your project
  • Support I2C, SPI, and HSU (High-Speed UART), easy to change between those modes
  • Support RFID reading and writing, P2P communication with peers, NFC with Android phone
  • Up to 5cm~7cm reading distance
  • On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  • Arduino compatible, plugin and play with our shield
  • RFID reader/writer supports
  • Mifare 1k, 4k, Ultralight, and DESFire cards
  • ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
  • Innovision Jewel cards such as IRT5001 cards
  • FeliCa cards such as RCS_860 and RCS_854

Package List:

  • 1 x PN532 NFC Module V3

Documents:
